ASUS Transformer Book Flip TP500LA Trackpad Replacement

Scritto Da: Graham Haigood
  • Commenti: 5
ASUS Transformer Book Flip TP500LA Trackpad Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

20 - 25 minuti

Introduzione

If your device isn’t properly tracking cursor movements or if your mouse clicks aren’t registering, it may be time to replace the trackpad. Follow these instructions to replace the trackpad in the ASUS Transformer Book Flip TP500LA.

  1. gCVivk3RZaBrGqIX
    gCVivk3RZaBrGqIX
    OXbuGZPGDNlKNZXb
    rPnGVilZJTrm5rCv

    • Remove the ten 10 mm Phillips #0 screws found on the computer's back case.

  2. StnXJO4TuiHGtpKB
    StnXJO4TuiHGtpKB
    ngqFmCqSSONDjfdI

    • Slide a heavy-duty spudger between the back case and the computer.

    • Slowly work around the edges to undo the clips to fully separate the back case from the computer.

    • Gently lift off the back case.

  3. eHLKnsRjV2RjPRXD
    eHLKnsRjV2RjPRXD
    SAUNykTViYEkqXxX

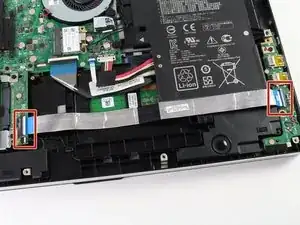

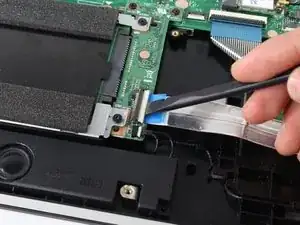

    • Slide a heavy-duty spudger into the ZIF connector and gently flip up the retaining flap to open the connector.

    • Pull the blue tab to remove the ribbon.

  4. 5BtWrdpDiLOvcUJK
    5BtWrdpDiLOvcUJK
    Ih6tSVaMGT5OaBNf

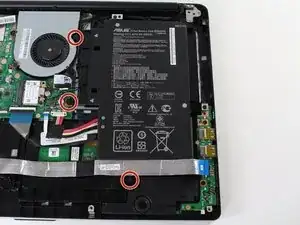

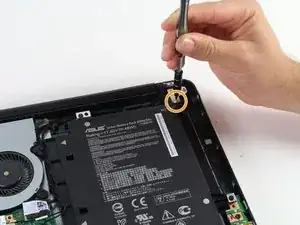

    • Remove the three 5 mm Phillips #0 screws.

    • Remove the single 6 mm Phillips #0 screw.

  5. dHT2IfSGtlPJWGxf
    dHT2IfSGtlPJWGxf
    nXCIx2kBMRXkyKSw

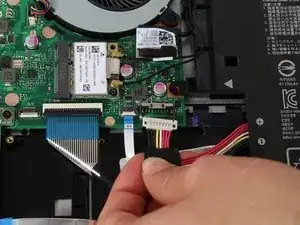

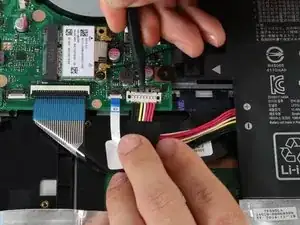

    • Use the heavy-duty spudger to pry the white 8-pin connector away from the motherboard.

    • Gently pull the connector away from the motherboard.

    • The black 8-pin connector on the motherboard is very fragile, so be careful when removing the white 8-pin connector.

    "The black 8-pin connector on the motherboard is very fragile, so be careful when removing the white 8-pin connector."

    Not an understatement, be VERY careful.

    Jean-Guy Rivard -

    Being the idiot, I did not see this before attempting removal of cable. I broke the connector away from the motherboard. Laptop works, just not on battery.

    BE VERY CAREFUL WHEN REMOVING CONNECTOR. I would suggest holding down the cable (white part), then lift metal up. Cable moves out when two black end stubs are cleared by the white connector. Anyone know how I can a replacement to solder back on?

    Dale Sparks -

    The metal peace actually slides back, so DO NOT PRY UP. just move the metal piece away from the white cable.

    Dale Sparks -

    The white connector lifts up off the black one when freed from the black tabs. Don’t try to pull it away horizontally.

    Joe Bronkema -

    Very helpful comments,

    Erika Frohmader -

  6. cnjOXHMrO2btcYha
    cnjOXHMrO2btcYha
    Jfgqj4sTXWCy1NZl

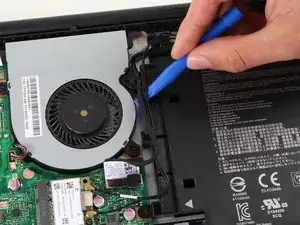

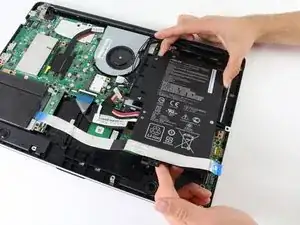

    • Use the blue plastic opening tool to loosen and remove the three black wires from the battery.

    • Slide the battery out from the computer to remove.

  7. QBuMqOmFBsAfmsMn
    QBuMqOmFBsAfmsMn
    sRgGJIswUSIAsg64

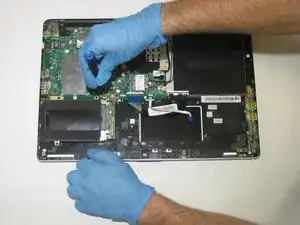

    • The trackpad is nestled into a small cutout on the opposite side as the fan.

    • Remove the trackpad from the device.

Conclusione

To reassemble your device, follow these instructions in reverse order.
