ASUS U57A-BBL4 Display Assembly Replacement

Scritto Da: Isabella Bernardi
  • Commenti: 0
ASUS U57A-BBL4 Display Assembly Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

15 minuti

Introduzione

If your screen is cracked or not working properly, this guide will show you how to replace the screen on the ASUS U57A-BBL4.

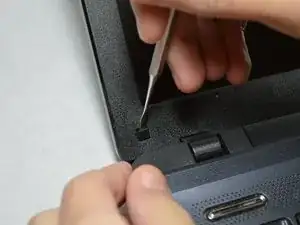

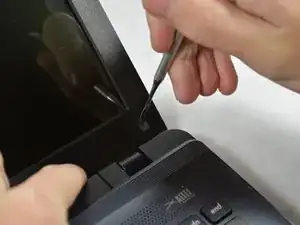

  1. DLoUlSOwqZBoGNHv
    DLoUlSOwqZBoGNHv
    wTG5BCMZddF5mbay

    • Carefully pry the two rubber covers at the bottom of the screen off with a metal sprudger.

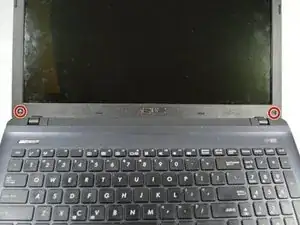

  2. VgRg3neIlXI6u4xV

    • Remove the two 1.84 mm Phillips head screws at the bottom of the screen using PH00 screw driver.

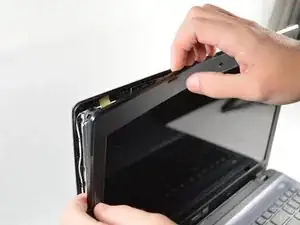

  3. skAu1VFSA64rkRSb

    • Starting from one of the corners, use your fingers to pry the bezel from the screen.

    • There is a popping sound when the bezel is loosened from the screen.

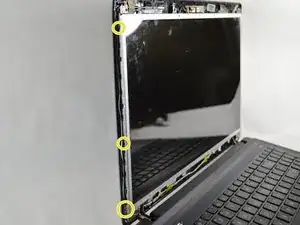

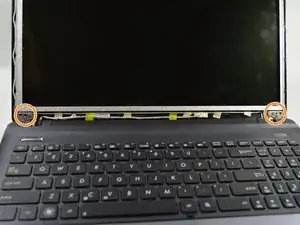

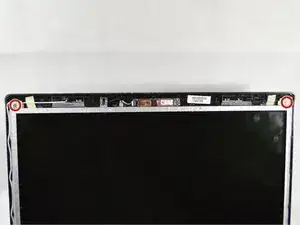

  4. fVEGcoAjA5xTJLSR
    fVEGcoAjA5xTJLSR
    nFpUXlPb6QrE1Z3K
    gkJHoHYWBf4FTwXC

    • Remove the top two 2 mm Phillips head screws.

    • Remove the four 2 mm Phillips head screws on the bottom.

    • Remove the eight 2 mm Phillips head screws on the sides of the screen. There are four on each side.

    • There are 14 screws in total: two on the top, four on the bottom, and four on each side. Use PH00 screw-driver for removing all 14 screws.

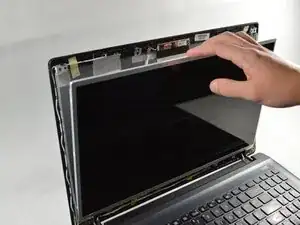

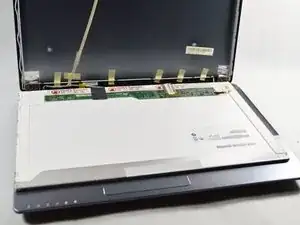

  5. nfK5JUHoUXbjYPcR
    nfK5JUHoUXbjYPcR
    oNv2deSoRULoa3Zi

    • Don't tear off the bottom of the screen or you might damage the connector cable.

    • Carefully lower the screen from the casing with your fingers, making sure to keep the bottom intact and lay it face down on the keyboard.

  6. KWvbGeQE3UOIZVKt
    KWvbGeQE3UOIZVKt
    54lfVkZlxCkK42Wg

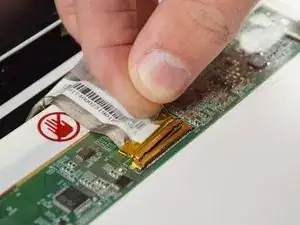

    • Disconnect the connector cable at the bottom by loosening the adhesive tape and lifting up.

    • Gently slide the cable out of the ridges to free the screen from the casing.

Conclusione

To reassemble your device, follow these instructions in reverse order.
