ASUS VivoBook S300C Hard Drive Replacement

Scritto Da: Cameron
  • Commenti: 0
ASUS VivoBook S300C Hard Drive Replacement

Difficoltà

Easy

Passi

4

Tempo Necessario

45 minuti

Introduzione

This Guide will accomplish how to remove the hard drive in the asus VivoBook S300C

  1. CCjYgQTgPs3bUNWy

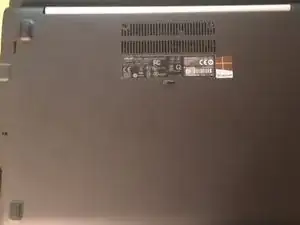

    • Remove the 10 screws on the back cover.

    • Some screws are missing from this system. You should take your own notes to make sure you put the correct screws in during reassembly.

  2. q4LhSg2JsphZoC3W

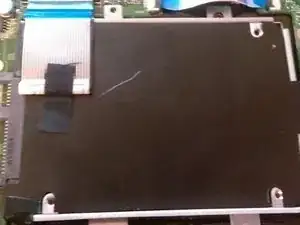

    • Remove the hard drive from the laptop. To do this, the cable is taped to the hard drive caddy. Remove the tape from the cable and disconnect the hard drive from the motherboard.

    • I am also missing screws here. Take your own notes to avoid misplacing screws during reassembly. They should all be the same length.

  3. BivluWOcdLAGDxeB
    BivluWOcdLAGDxeB
    XqxIAhnglFtrO2rT

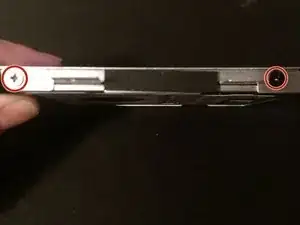

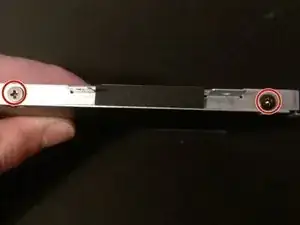

    • Remove the 4 screws holding the hard drive in the caddy. There are two screws on each side.

    • Reassemble the laptop by following the steps in reverse order. This is my first guide, so let me know what I did wrong so I can fix it.

Conclusione

To reassemble your device, follow these instructions in reverse order.
