ASUSTeK B360-KYLIN Graphics Card Replacement

Scritto Da: Alex Chukwuka
  • Commenti: 0
ASUSTeK B360-KYLIN Graphics Card Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

25 - 30 minuti

Introduzione

Use this guide to install a new Graphics card into your personal computer.

In this Guide we successfully installed an Nvidia GeForce GTX 1660 SUPER on a ASUSTeK B360-KYLIN Motherboard using only a crosshead screwdriver.

Be careful to set up your system in a static free environment so as to mitigate the likelihood of being electrocuted.

Before using this guide make sure you have deleted all old driver files on your system so as to prepare your system for a fresh driver install.

  1. pGhelFeL4kF1pGvl

    • Remove the two screws holding the cover to the rest of the computer case.

  2. ZXNb6GG1sIGmIdVt

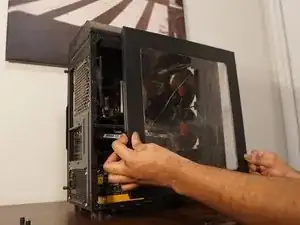

    • Remove the cover case from your computer.

  3. ljviIlF21JeZeBvW
    ljviIlF21JeZeBvW
    4Yj4X2SyOMJc1weY

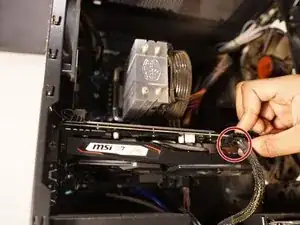

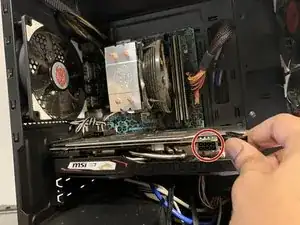

    • Unplug the power cable on the graphics card.

  4. mrVZDwdo3RWUcLVK
    mrVZDwdo3RWUcLVK
    DQHlnmBQZyIOA4wA

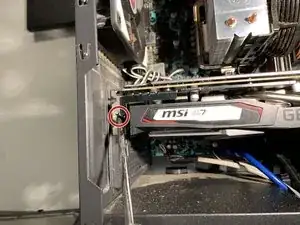

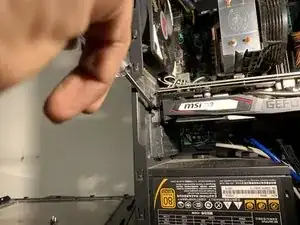

    • Using a Phillips #1 screwdriver, remove the screw holding the graphics card to the case.

  5. wj2XdrtG51uAyHQF
    wj2XdrtG51uAyHQF
    AxBpFrNFPECDLynS

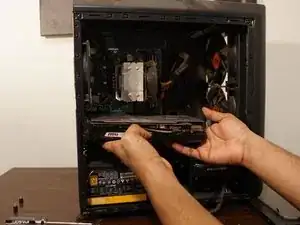

    • Gently remove the graphics card out of the device.

Conclusione

To reassemble your device, follow these instructions in reverse order.
