Acer Aspire 7736Z-4809 Hard Drive Replacement

Scritto Da: Pnithan Jantarakolica
  • Commenti: 0
Acer Aspire 7736Z-4809 Hard Drive Replacement

Difficoltà

Moderate

Passi

10

Tempo Necessario

30 - 45 minuti

Introduzione

Before starting this guide, make sure to back up all the computer data.

  1. mLWvXDAfv6UtXRWe

    • Unplug and power off the laptop.

    • If the battery is still connected to the laptop, remove the battery.

  2. jLRkLoUZBwDFkDg6

    • Flip over the laptop so that the back panel of the laptop is facing up.

  3. bT4RxyVqDVubDxhV
    bT4RxyVqDVubDxhV
    TZZvF6HV5GII1TQY

    • Use the Phillips #1 screwdriver to remove the eight 6.5 mm Phillips #1 screws.

    • Only the four screws in the center are removable, the four along the edges are held in by rivets but can be loosened.

  4. cGmXTIjNXVmEN22I
    cGmXTIjNXVmEN22I
    LfuaKXaNSZZRlsJX
    ilkM5mI6yvYoelNs

    • Remove the back panel of the laptop.

  5. P2XyRe1gENXKTblu

    • Connect a grounding cord to a metal interface on the laptop.

    • Ground the laptop to prevent static electricity from damaging the electrical components inside the laptop.

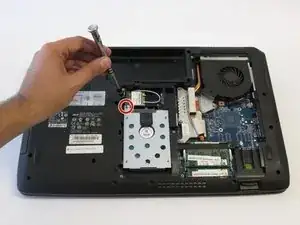

  6. ergR2EKliU1ucnZg
    ergR2EKliU1ucnZg
    llRGrL2RHMyaGUCf

    • Use the Phillips #1 screwdriver to remove the 3.5mm Phillips #1 screw.

  7. bdYkLRTKtBfVWhkH
    bdYkLRTKtBfVWhkH
    YV4qxeOhVxBLLkXL

    • Slide the bracket towards you to release it from the frame.

  8. MQrknngLtM2NanxP
    MQrknngLtM2NanxP
    leUNUDDIptDUjItc
    ufPXVjIZEroD6OAH

    • Use the black tab to pull the hard drive up and out of the laptop.

  9. DKIjZlT6KMjLodNJ
    DKIjZlT6KMjLodNJ
    LpOOOIfRA1GidgOg

    • Use the Phillips #1 screwdriver to remove the four 3.5 Phillips #1 screws.

  10. 5hXD2k5YMOFmAyjG

    • Remove the hard drive from the bracket and install the new hard drive.

Conclusione

To reassemble your device, follow these instructions in reverse order.
