This is a beginner friendly guide to replacing thermal paste in an Acer Aspire 774G-58GS laptop.
Overheating in a laptop can cause lagging or automatic shutdowns which can be very frustrating. It is a very common problem, and one important way to keep temperatures cool is by applying new thermal paste.
Before using this guide, please ensure that you have removed all the dust from the laptop air vents using compressed air. You may note that the laptop functions better after cleaning it. If you feel that there is no improvement, continue to follow this guide to learn how to apply thermal paste.
No prior knowledge or experience is required to perform this task. Following this guide will help guarantee that you get the job done easily and without creating any mess or damaging parts!
-
-

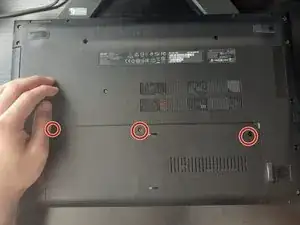

Remove the three screws from the plate that covers the RAM and HDD using a Phillips #0 screwdriver.
-

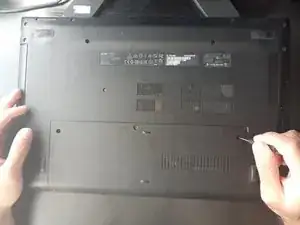

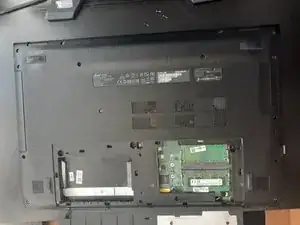

Remove the plate from the laptop.
-
-
-

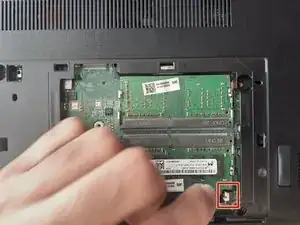

Remove the DVD drive and the three screws that are underneath it.
-

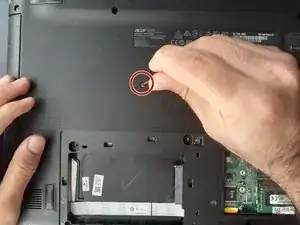

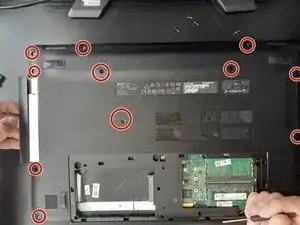

Remove all the screws surrounding the backplate.
-
-
-

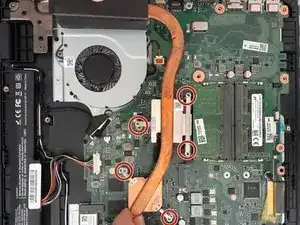

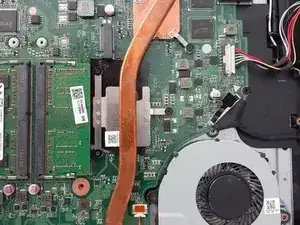

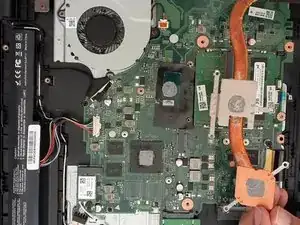

Remove the five screws from the heat sink.
-
Take a cotton ball and dab it with isopropyl alcohol.
-
Use the cotton ball to wipe the old thermal paste from the heat sink.
-
-
-

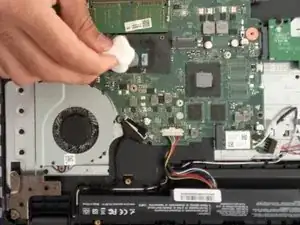

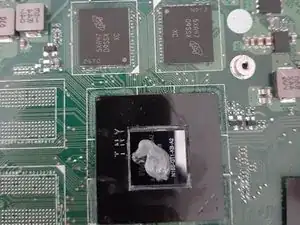

Take another cotton ball, dab it with isopropyl alcohol, and gently wipe the thermal paste off of the GPU and CPU.
-
Once the thermal paste is completely off, let the heat sink dry for a couple of minutes.
-
To reassemble your device, follow these instructions in reverse order.
