Acer Aspire E5-571 Keyboard Replacement

Scritto Da: daniel sawyer
  • Commenti: 6
Acer Aspire E5-571 Keyboard Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

15 - 20 minuti

Introduzione

This manual is for Acer Aspire model E5-571-5552 to replace any non-operational keys on your personal computer. This demonstrates how to remove the laptop keyboard along with the touchpad. Beware, the keyboard and touchpad are connected during the removal process. Prior to proceeding with this manual, inspect the keyboard for any liquid or debris that may have fallen into the keyboard causing it to be non-functional or not work properly. Follow this link to learn how to clean your laptop Guida alla pulizia della tastiera del laptop. Before continuing with the process, make sure to turn off your laptop completely and unplug it from any external power sources.

  1. egcIou3kYwAFUPZk

    • Make sure the laptop is shut down.

    • Flip the laptop upside down. Rotate it so the battery faces you.

  2. COUKEIVGtWjQMEIJ

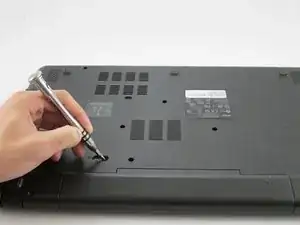

    • Place the pointed end of a spudger into the battery lock. Slide the battery lock to the left using the spudger. A "click" sound will accompany the release of the battery.

    On the E-572P the hdd and memory is accessed from the removable flap on the bottom of the laptop - do not try to take the keyboard off!

    Peter -

  3. BwNIwKy4WyIU3iiS

    • Pull the battery towards you to remove it from the laptop.

  4. swqedRTwTuHOUIdu

    • Remove all eighteen 8 mm screws with a Phillips #0 screwdriver.

  5. QvuJrPpaBYQp5bpx
    QvuJrPpaBYQp5bpx
    KqkMZTFasSEUbpdH
    V14aoWeYHpehGYPL

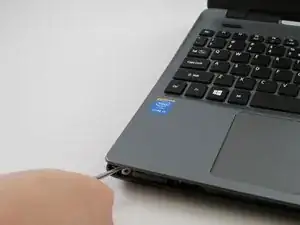

    • Carefully pry apart the clips holding the keyboard in place by moving a metal spudger along the seam.

    • Be careful not to break the plastic clips. Do not remove the keyboard until told to do so.

  6. kNdpqkMnqZZB1RdD
    kNdpqkMnqZZB1RdD
    WaKMhRIPBurnARCY

    • Carefully flip up the white hinge. Then, detach the three ZIF ribbons connected to the motherboard.

    • Remove the panel with the keyboard and the touchpad.

    not a complete guide, there is more steps to disassembly keyboard

    darkman.lv -

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

daniel sawyer

Membro da: 23/08/15

2566 Reputazione

4 commenti

keyboard cable is a b$%*h

shrs -

can you explain how to remove the keyboard and attach the new one to the whole top

christhesoccerkid -

keyboard cable is indeed a b$%*h, but you will get there with the patience of a zen master

here's a video that shows the extra steps of remo9ving and replacing keyboard: https://www.youtube.com/watch?v=DpawPQrq...

tom -

I'm only 13 and it was easy to get to the dvd-rw drive and unjam it, little hands made the keyboard cable a breeze.

tha B-BOY -
