Acer Aspire One 522 Battery Replacement

Scritto Da: Claudio Felix
  • Commenti: 1
Acer Aspire One 522 Battery Replacement

Difficoltà

Very easy

Passi

3

Tempo Necessario

5 - 30 secondi

Introduzione

Use this guide to replace a faulty Acer Aspire One 522 Laptop Battery. You can also check your battery's health with this article.

Warnings: While replacing the battery is a generally safe procedure, please remember to turn your netbook off and unplug it from any power source before proceeding. Exercise extreme caution if your battery is swollen or shows any signs of damage.

  1. nuR6STED5fANMNl3

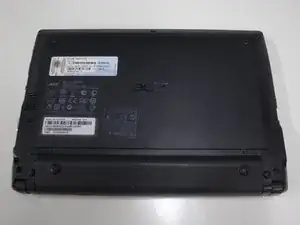

    • With the screen closed, turn the netbook upside down on a table.

  2. DTL2XndHOFOhYLQI

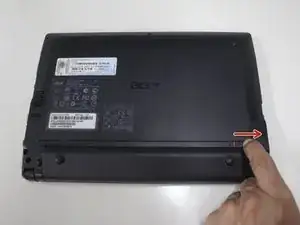

    • Unlock the battery by sliding the indicated lock to the right. A red indication will show it is unlocked.

  3. LRh2JBGtxHQ1Dned

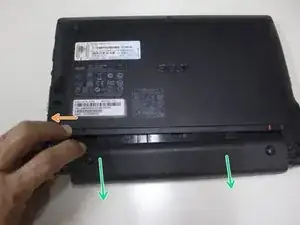

    • Slide and hold the lock to the left to release the battery.

    • Pull the battery out.

Conclusione

To reassemble your device, follow these instructions in reverse order.
