Acer Aspire V5-552PG-X469 Internal Fan Replacement

Scritto Da: Sanjana Duddupudi
  • Commenti: 0
Acer Aspire V5-552PG-X469 Internal Fan Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

15 minuti

Introduzione

The Acer Aspire is a 15.6" slim, touchscreen laptop. These laptops are ideal for household users or small businesses.

  1. aeQdAYoGJksbYc4V

    • Remove the storage tray on the left edge of the device.

  2. QrbRYmrN1uilXGhY

    • Use a Phillips #0 screwdriver to remove seventeen 7mm screws from the lower case.

  3. jYPTgLCOWfb6gJH6

    • Lift up the back case to remove it.

  4. KRSMWc21Qo4oObIc
    KRSMWc21Qo4oObIc
    Dnbf1EEFKIO5mSYI
    xRqGFZqEQPEvDaEx

    • Unplug the two multi-colored wires

    • There is one multi-colored wire near either side of the fan

  5. vVxmIrROPCWU6pLm
    vVxmIrROPCWU6pLm
    RvHstsgZCvJiWWmF
    cS44vgHgxaYV2nou

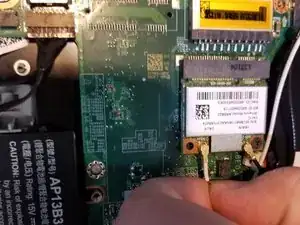

    • Remove the white and the black antenna wires from the wifi module.

  6. g2ESgjCCZZPSODig
    g2ESgjCCZZPSODig
    LFmv4draQNJbnpXY

    • Remove the five, 1/4 inch screws

  7. OSIFHduZYNy1XZpH

    • Remove the internal fan

Conclusione

To reassemble your device, follow these instructions in reverse order.
