Acer Aspire V5-571 Optical Drive Replacement

Scritto Da: ZFix
  • Commenti: 5
Acer Aspire V5-571 Optical Drive Replacement

Difficoltà

Easy

Passi

3

Tempo Necessario

10 - 15 minuti

Introduzione

Optical drive replacement.

  1. FyaJlcsBiKUiCRkJ
    FyaJlcsBiKUiCRkJ
    mhJK4y6O15LtLHVB
    FrNQPBFqGXuwL5ZC

    • Turn off the laptop and remove the battery.

    • Remove two screws securing the Keyboard.

    • The Keyboard is held by two locking clips, under the battery. Use the sharp tip of a plastic tool to release the keyboard.

    The two clips push toward the space-bar part of the keyboard. There are further clips around the edge of the keyboard, but it can be removed by careful prying with a thin blade screwdriver.

    ENT -

  2. HCSfFlDNLlcmDLm2
    HCSfFlDNLlcmDLm2
    kmTdBs6EXEghaMlM
    TQGl1OejYatyQNh1

    It would be helpful to have more info on how to remove the two cables. The larger one has a couple of clips that slide, but what exactly comes off? Do the plastic strips lift, or do the flat cables just pull out of them? Don't want to break something!

    ENT -

    I watched several videos, many of which had the action hidden behind the keyboard. The larger ribbon pulls out of the strip after the two white clips on the end are moved. The smaller one has a black strip which lifts from the ribbon side, releasing the cable.

    ENT -

  3. 3MyVkRgFmxurcOd2
    3MyVkRgFmxurcOd2
    jm6o45xN2O2E51od
    hivB5gPvlYK2NnoP

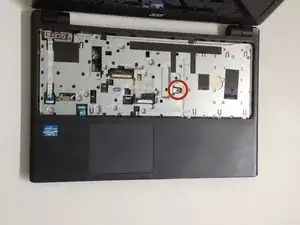

    • Remove the screw securing the Optical drive and gently press the drive to show slightly as at the second pic.

    • Slide the drive to the left and remove it.

Conclusione

To reassemble your device, follow these instructions in reverse order.
