Introduzione
This is the trackpad replacement guide for the Acer Chromebook C731-C8VE. By following this guide, you should be able to completely remove the trackpad from your device. Make sure to follow all hazard warnings for your safety.
Strumenti
-
-
Use a JIS #00 screwdriver to remove the 11 screws on the underside of the laptop.
-
These 2 mm screws have washers and must be placed in these specific areas.
-
The 2 mm screws marked orange do not have washers attached and will be placed on the left and right of the device.
-
-
-

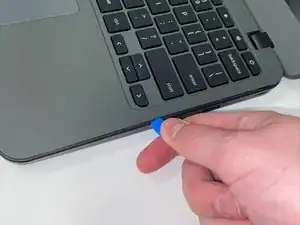

Use the iFixit opening tool to remove the keyboard from the device by prying it loose from the base.
-
-
-
Detach the wires connecting the keyboard and the touchpad to the motherboard by lifting the black connectors up.
-
-
-

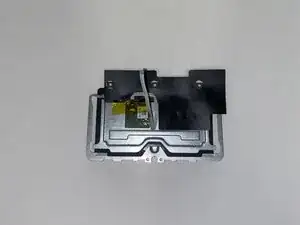

Use the JIS #00 screwdriver to remove four 1mm screws that connect the trackpad to the device.
-
To reassemble your device, follow these instructions in reverse order.
