Acer Chromebook C740-C4PE Heatsink Replacement

Difficoltà

Easy

Passi

7

Tempo Necessario

15 minuti

Introduzione

This guide will demonstrate how to partially take apart the Acer Chromebook C740-C4PE, in addition to removing the heatsink.

  1. CFFcLSQAUXKTLTsp
    CFFcLSQAUXKTLTsp
    OUQEbmCHUlxEXuNJ
    jCpfwa4gGQHIvPNm

    • Make sure the laptop is turned off and laid down on a flat surface.

    • Unscrew the thirteen 10mm screws on the back of the device using a Phillips #0 screwdriver.

    • Use the spudger or any other prying tool to pry the back plate off of the device.

    • Be sure not to pry too hard as it may result in snapping the back plate.

  2. ln1YEWKXoqrNitop
    ln1YEWKXoqrNitop
    4LPKJKjlKXXAZpgl

    • Remove the four 5mm screws on the heatsink using the Phillips #0 screwdriver.

  3. cyCPNlPaXWB32Uvm
    cyCPNlPaXWB32Uvm
    kkZX42pUMeNIBJyg

    • Loosen the two Phillips-head screws on the fan attached to the heatsink.

  4. 1cXfFmLN3BompiNe

    • Detach the two antennae cables from the WiFi card by gently pulling on them.

  5. Tt3FOVXT4qZ35X3h

    • Gently pull the fan cable out of the motherboard.

    • Pulling too hard may break the wires or the connector itself.

  6. ib4ZS3bbMlykrNEa

    • Remove the cable routed through the fan.

    • Do not completely remove the cables as they are attached to the motherboard. Once they are no longer routed in the fan, leave them as they are.

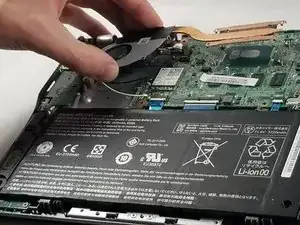

  7. cTGN4dAB5vRc1CfQ

    • Remove the heatsink from the motherboard.

    • Before changing the heatsink/fan, you must clean off the thermal paste from the CPU and apply new thermal paste.

Conclusione

To reassemble your device, follow these instructions in reverse order.
