Acer Chromebook C740-C4PE Solid State Drive Replacement

Scritto Da: Sang Huynh
  • Commenti: 1
Acer Chromebook C740-C4PE Solid State Drive Replacement

Difficoltà

Easy

Passi

3

Tempo Necessario

10 minuti

Introduzione

This guide will show you how to change the Solid State Drive in Acer Chromebook C740-C4PE.

  1. jxFHbKELYVVJhnGt
    jxFHbKELYVVJhnGt
    gH1ZEbHertlqoCLW
    OoP6NpE5AODfhW5Z

    • Make sure the laptop is turned off and laid down on a flat surface.

    • Unscrew the 13 screws on the back of the device using a PH0 Phillips head screwdriver.

    • Use the spudger or any other prying tool to pry the back plate off of the device.

    • Be sure not to pry too hard as it may result in snapping the back plate.

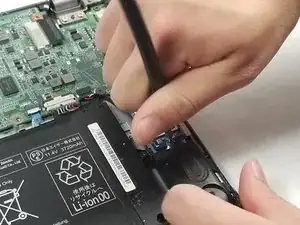

  2. x5Yf1fUWx5EYxrVc
    x5Yf1fUWx5EYxrVc
    t1qNfXmdVZZKSH1P
    ZUCx6VN5O3gPs6i3

    • Remove the 3.75 mm screw with a Phillips #0 screwdriver.

  3. PpEiOjL3gM3LbxQI

    • Pull the Solid State Drive out of the connector.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Sang Huynh

Membro da: 08/03/17

252 Reputazione
