The central processing unit (CPU) is the brain of your computer. It is responsible for executing program instructions and performing basic arithmetic and logical operations. If your Acer E5-571-54FL is experiencing glitches or displaying a blue screen, the CPU may need repairs. Follow the instructions in this guide to replace the CPU in your Acer E5-571-54FL laptop. Before beginning, power off the device and unplug it from the charger.
-
-
Place the pointed end of a spudger into the battery lock. Slide the battery lock to the left using the spudger. A "click" sound will accompany the release of the battery.
-
-
-
Carefully pry apart the clips holding the keyboard in place by moving a metal spudger along the seam.
-
-
-
Carefully flip up the white hinge. Then, detach the three ZIF ribbons connected to the motherboard.
-
Remove the panel with the keyboard and the touchpad.
-
-
-

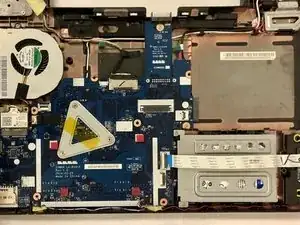

Locate the CPU cooling fan in the upper left corner of the laptop.
-
Using a #0 Phillips screwdriver, remove the two 4.5 mm screws that secure the fan to the case.
-
-
-
Place the tips of the ESD safe pointed tweezers between the plug and the socket of the fan connection.
-
Gently push the tweezers to the left to disconnect the fan plug.
-
Move the fan connector and its wires to free them from the motherboard and the WiFi card.
-
-
-
Lift the curved end of the fan by about 30 degrees.
-
Use your hand to lift the fan up and to the right until it is clear of the case.
-
-
-
Locate the WiFi card. It is just below the fan and has a white coaxial cable and a black coaxial cable attached to it.
-
Grab the section of the white coaxial cable behind the brass connection using ESD safe blunt nose metal tweezers.
-
Carefully lift the white coaxial cable up and forward to disconnect the it from the WiFi card.
-
Repeat the previous two bullet points to disconnect the black coaxial cable from the WiFi card.
-
-
-
Use a #0 Phillips screwdriver to remove the 3 mm screw from the upper left corner of the WiFi card.
-
-
-
Grab the upper left corner of the WiFi card with your fingers.
-
Gently pull the WiFi card away from the socket.
-
-
-
Locate the hard drive and its carriage at the lower right corner of the laptop.
-
Release the USB port ribbon cable by using the plastic opening tool to carefully lift up the black locking tab of the ZIF connector.
-
Move the USB port ribbon cable to the side.
-
-
-
Use a #0 Phillips screwdriver to remove the two 4mm screws securing the hard drive carriage in place.
-
-
-
Hold the right side of the laptop in place with your right hand.
-
Put the fingers of your left hand along the top edge of the hard drive carriage.
-
Push the hard drive carriage towards your right hand to disconnect it from the motherboard.
-
-
-
Locate the two 3 mm Phillips screws holding the hard drive into the carriage. There is one screw on each side of the carriage.
-
Hold the hard drive carriage with your non-dominant hand along one side. Ensure one of the Phillips screws is visible.
-
Using a #0 Phillips screwdriver, remove the 3 mm screw to release the side of the hard drive from the carriage.
-
Repeat the two previous bullet marks to remove the second 3 mm Phillips screw. This should also free the hard drive from the carriage.
-
-
-
Locate the three wire speaker connection. It is centered at the edge of the motherboard closest to your body.
-
Place the tips of the ESD safe pointed tweezers between the plug and the socket of the speaker connection.
-
Gently push left to disconnect the speaker plug.
-
-
-
Locate the screen connection. It is centered on the side of the motherboard furthest from your body.
-
Place your fingernails on each side of the screen connection plug. Gently push away from your body to disconnect the plug.
-
-
-

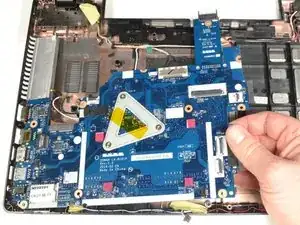

Carefully lift up on the right edge of the motherboard near the hard drive connector.
-
With minimal force, pull the motherboard to the right freeing the ports on the left from the case.
-
Put down the right side and allow the motherboard to rest in the case.
-
Lift the left side of the motherboard up and turn it over so the ports are now facing right.
-
-
-
Grip the edge of the motherboard closest to your body with your non-dominant hand.
-
Grip the power connection wires with your dominant hand and gently pull away from your body to disconnect.
-
-
-
Shut down the laptop.
-
Flip the laptop upside down. Rotate the laptop so the battery faces you.
-
-
-
Place the pointed end of a spudger into the battery lock. Slide the battery lock to the left using the spudger until you hear the battery release. Pull the battery towards you to remove it from the laptop.
-
-
-
Unscrew the outer 6 mm screws located on both the top and the bottom sides of the fan. Detach the power cable by pulling it out. Remove the cooling fan.
-
-
-
Locate the hard drive. Unscrew the two 4 mm Phillips head screws that connect the hard drive to the motherboard. Carefully detach the ZIF ribbon. Remove the hard drive.
-
Congratulations! You have successfully completed the process of replacing the CPU in your Acer E5-571-54FL laptop. This guide provides step-by-step instructions, guiding you through the disassembly of various components such as the battery, keyboard, cooling fan, WiFi card, hard drive, and motherboard. Carefully following each step ensures a smooth disassembly process.
Remember to exercise caution and use the appropriate tools to avoid damage during the procedure. If you encounter any resistance or difficulties, double-check the connections and components to ensure everything is properly disconnected. Take your time, and do not hesitate to refer back to specific steps if needed.
To reassemble your device, simply follow the instructions in reverse order. Start by reconnecting the motherboard, securing it with screws, and reconnecting any detached components. Be sure to tighten all screws securely but avoid over-tightening. Finally, reattach the battery and power on your Acer E5-571-54FL.
