Acer Iconia W4-820 Battery Replacement

Scritto Da: TechVid
  • Commenti: 0
Acer Iconia W4-820 Battery Replacement

Difficoltà

Easy

Passi

5

Tempo Necessario

6 minuti

Introduzione

  1. iURjXVQIaVjqPgxE

    • Flip the tablet over so that the screen is facing down

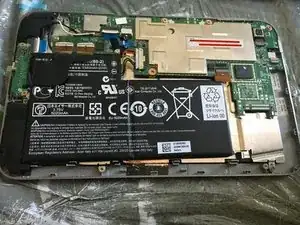

  2. Inrnpa1ptOGwYd1c

    • Use a plastic card or guitar pick to remove the back panel

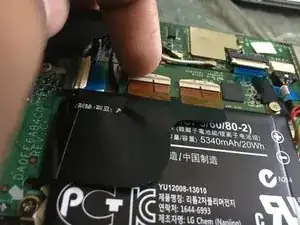

  3. mjYoDol3VNarhREc
    mjYoDol3VNarhREc

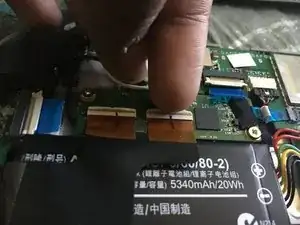

    NbyZxyuhIbkgMKco

    • Use your finger, spudger, guitar pick, or card

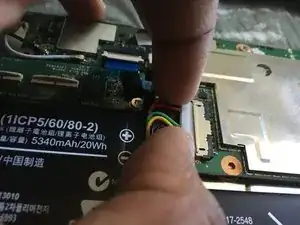

  4. GXnMXmU2bDkJR5Id
    GXnMXmU2bDkJR5Id

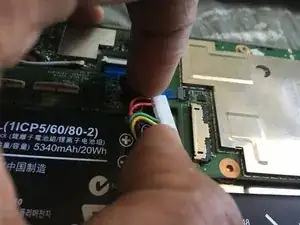

    MXHUyi2TZBcWoSYU

    • Use the same tools as before to remove the connector

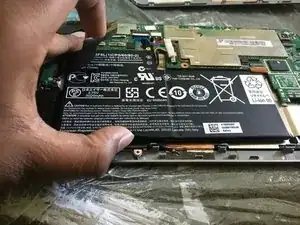

  5. 5hZFHFdLg4QgiDCZ
    5hZFHFdLg4QgiDCZ
    BP1aFUFJfCbCEDpC

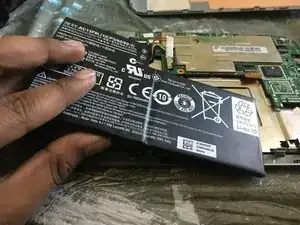

    • Gently remove battery as there is adhesive on the back

Conclusione

To reassemble your device, follow these instructions in reverse order.
