Introduzione

If your computer has been acting up recently. Every time you turn it on, it shuts down after just a minute or two, and we've noticed there's no sound during this process. We suspect the fan might not be working properly, causing the system to overheat. Let's explore this issue further, to keep our computer running smoothly you should follow the guide to replace the heat sink/fan.

  1. 5wXKAoPohC2uDHiU

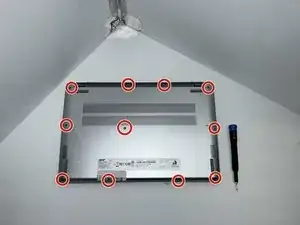

    • Use a Torx T5 screwdriver to remove the eleven screws that secure the lower case.

  2. 6NgTgxIHJRS2vCGl

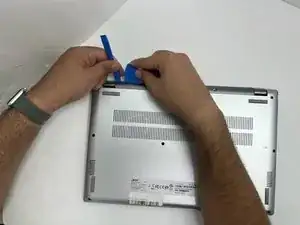

    • Insert an opening pick in the seam between the lower case and chassis.

    • Slide the pick around the perimeter while prying until the lower case releases.

    • Remove the lower case.

  3. MxuBw6GEnITOokNC

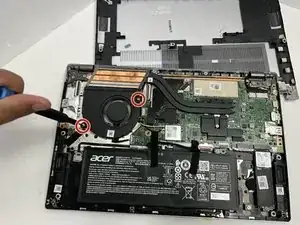

    • Use a Phillips # 1 screwdriver to remove the two 5.9 mm screws that secure the fan.

  4. Ai5bG2YJqpoZKGSm
    Ai5bG2YJqpoZKGSm
    3Hjv2XVCCMbQA4t5

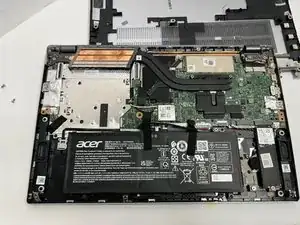

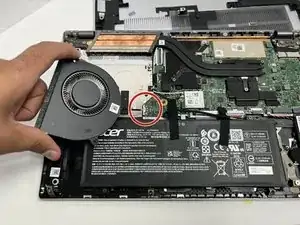

    • Grasp the white fan connector and pull it directly out of its socket.

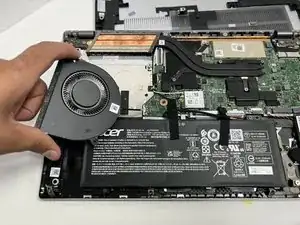

    • Lift the fan out of the chassis.

Conclusione

To reassemble your device, follow these instructions in reverse order.
