Air Hog Smash Bots Controller Motherboard Replacement

Scritto Da: Brittany Frecker
  • Commenti: 1
Air Hog Smash Bots Controller Motherboard Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

5 minuti

Introduzione

This guide will describe how to replace the motherboard in the controller.

  1. qOd2JLWCQlQBQVKB
    qOd2JLWCQlQBQVKB
    LKsK5PQfeAciLyJD

    • Take out your controller and access to the back of the controller.

  2. hGDaWCDUprXulDon

    • Remove the screw on the battery lid. Using the Hex 4 socket and PH #0 bit, remove the 8 mm screw.

  3. T3WoJ1H1XPfMhjxK

    • Remove the 2 AAA batteries.

  4. EOPqljLgI2anHAPA
    EOPqljLgI2anHAPA
    XrnYprG5hMEIURPB

    • Using the Hex 4 socket and PH #0 bit, remove the four 8 mm screws on the panel.

  5. UGRrOk2SKdmaAMl2
    UGRrOk2SKdmaAMl2
    u4pLRliPtP3vNRMm

    • Use the plastic opening tool to disconnect the front and back parts of the panel.

    • Some of the internal components may be displaced when opening the controller.

  6. caHuORf1aBR2NYwm
    caHuORf1aBR2NYwm
    ETXtEVALfqWBbvgx

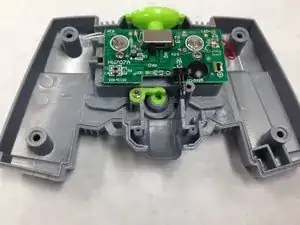

    • Using the PH #0 bit, remove two 8 mm screws on the main board.

    • De-solder the LED wires from the motherboard.

    • Lift the motherboard with a spudger to remove it from the case.

Conclusione

To reassemble your device, follow these instructions in reverse order.
