Air Hog Smash Bots Motherboard Replacement

Scritto Da: Brittany Frecker
  • Commenti: 0
Air Hog Smash Bots Motherboard Replacement

Difficoltà

Easy

Passi

11

Tempo Necessario

5 minuti

Introduzione

This guide allows you to replace the motherboard of the Smash Bot. A soldering iron will need to be used for this, directions on how to solder can be found here.

  1. 2p3A1NlTDoa1Gd4C

    • Using the Phillips #0 screwdriver to remove the 8 mm screw.

  2. OQaEChiJL6113quY

    • Lift and slide the batter cover away from the tab holding it in place at the bottom.

  3. mqn2BGefM4ZhuHUP

    • Remove the 3 AAA batteries.

  4. kFiviJbdDHsGUEPH
    kFiviJbdDHsGUEPH
    qMIakXhlRHckhpa5

    • Using a Phillip #0 screwdriver to remove the eight 8 mm screws.

  5. s424aYMVwufaSPWx
    s424aYMVwufaSPWx
    PeXR6Fk2c5sHbIMC

    • Remove the upper armor of the Smash Bot.

  6. UKXUUfqfZtUZywk2

    • Hold the upper body and slide out the bottom half of the Smash Bot.

    • The motor extends from the lower-body into the upper-body. Be careful to not damage the motor.

  7. jrcfsutvmHdPgAKV

    • Peel back the four decal stickers that hold the front and back of the bot together.

  8. TSEW5yocTqE6EUET
    TSEW5yocTqE6EUET
    1HKq1FP5YabbSL6k

    • Use the plastic opening tool to pry the front and back of the lower body apart.

    • Carefully remove the back of the bot from the front.

  9. pOFBmWe1twC1juuu
    pOFBmWe1twC1juuu
    KfhPRPTQlvjcL4Ln

    • Remove four 4.75mm screws from the motherboard.

  10. U6j5NgvWM2MT114S
    U6j5NgvWM2MT114S
    xNqClwBTR5u4AgMW

    • Use the soldering iron to remove the two wires from the motherboard. Directions on how to solder can be found here.

  11. nwVw5omdESZKpDby

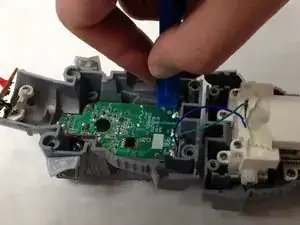

    • Use the spudger to pry the motherboard away from the robot.

Conclusione

To reassemble your device, follow these instructions in reverse order.
