Altec Lansing BoomJacket Battery Replacement

Scritto Da: Ryan Byrnes
  • Commenti: 11
Altec Lansing BoomJacket Battery Replacement

Difficoltà

Moderate

Passi

9

Tempo Necessario

10 - 20 minuti

Introduzione

Is your Altec Lansing BoomJacket having charging issues or will not charge at all? Replacing the battery may help.

  1. AE4v4E6vrxSnHuZV

    • Using your hands, remove the pegs (4+4) from the front and back of the speaker.

  2. AAJoEVitKGi3TvBr

    • Remove the outer black rubber housing of the speaker.

  3. gHyes4gihZM2XXU1

    • Remove the inner blue rubber housing from the speaker.

  4. hmF6bjeF1kD3LDjg

    • Pull out the two black wire meshes using a metal spudger.

    • Be careful not to damage the metal casing.

  5. 6QBbuE5Blq1Dt3nH
    6QBbuE5Blq1Dt3nH
    5awbHeyhVgNvEvuN

    • Using tweezers remove the rubber stoppers (4 at the back + 2 at the front).

  6. kV3tH5hjZHg56jDP

    • Using the size PH1 screwdriver remove the screws exposed from the rubber stoppers (4 + 2).

  7. JUEhriNTix1xlyBe

    • Pull the case apart and you will be able to see all the components inside the speaker.

  8. 5pUGGIrn2np3mtpe

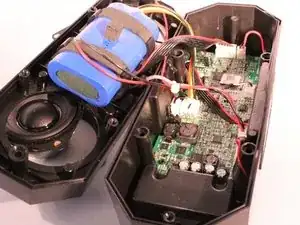

    • The battery will be sitting right behind the speakers when the case is open.

  9. EUqyfKctZZpbuD5f

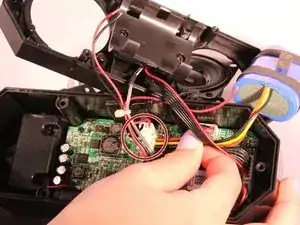

    • Unplug and disconnect the battery from the motherboard.

    Where can I get a replacement battery

    Joseph Rivers -

    This fixit guide is absolutely worthless unless one has a source for replacement batteries. AltecLanding online customer is not responsive. I have not found an online source for parts yet. Option seems to be to chuck the product and replace with another brand.

    Very discouraging.

    dblbbl -

    First of all i cannot get the rubber cover of to get to the battery. I went out and bought the tools no luck...bottom line you get up having to buy a new unit or another model....Not happy at all

    James Miranda -

    I bought the battery from Amazon. About $12.

    Use the model number of the battery and then match the pictures of the battery and the plug on the wires.

    The screws were a little difficult to get out, but persistence pays off. There were seven of them.

    Andy -

    Acted Lansing customer service is absolutely no help at all, but this step by step guide got me through it.

    Andy -

Conclusione

To reassemble your device, follow these instructions in reverse order.
