Altec Lansing Super Life Jacket Speaker Handle Replacement

Scritto Da: Tien Nguyen
  • Commenti: 2
Altec Lansing Super Life Jacket Speaker Handle Replacement

Difficoltà

Easy

Passi

5

Tempo Necessario

6 - 10 minuti

Introduzione

If your Altec Lansing Super Life Jacket speaker handle damaged, faculty, or loose, use the following step-by-step guide to replace it.

  1. xAYAJf21JQDBNlWL
    xAYAJf21JQDBNlWL
    CPNAiOkXBVJ4PIZi

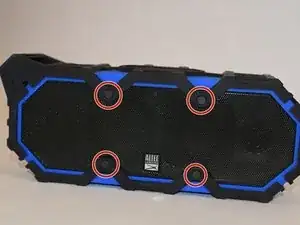

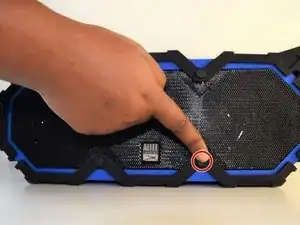

    • Use your hands to remove the pegs (4) located on both sides of the speaker.

  2. uItIdIL5rh4GDOic
    uItIdIL5rh4GDOic
    6Jw2QqchWQhbj2RV
    GiQGAMjVBTFVxZvM

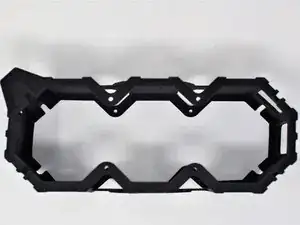

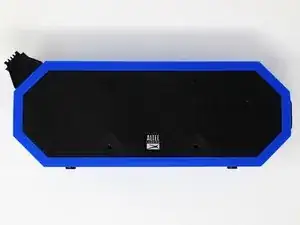

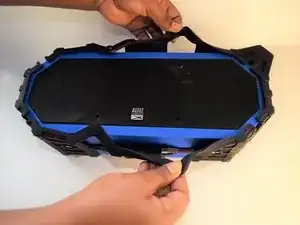

    • Remove the outer black rubber housing of the speaker.

  3. qbZHnYFPIHHAVyKU
    qbZHnYFPIHHAVyKU
    xIXiAXSotmPp2SOA
    2BTBTMWSuFWfVLXy

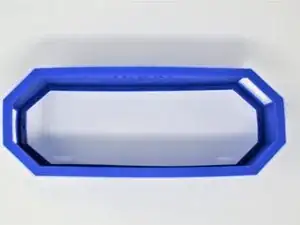

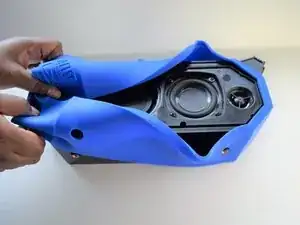

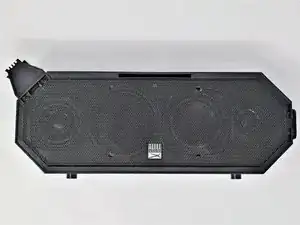

    • Remove the inner blue rubber housing from the speaker.

  4. reOCERuKCRLfAb4V
    reOCERuKCRLfAb4V
    1s6GcrV1MNEnEHQt

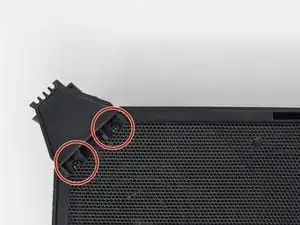

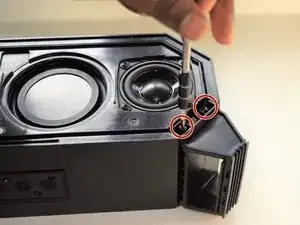

    • Remove the 4 7.8mm Phillips screws on the speaker cover using the PH0 screwdriver.

  5. Z6T5QRiFRKBWRf3G
    Z6T5QRiFRKBWRf3G
    U5iQIYLWIS3wdQVe

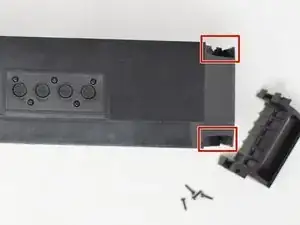

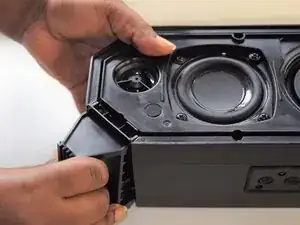

    • Carefully slide the handle off the speaker but pushing upwards to the direction the handle is facing.

Conclusione

To reassemble your device, follow these instructions in reverse order.
