Amazon Echo Show 5 Speaker Replacement

Scritto Da: David Degbor
  • Commenti: 3
Amazon Echo Show 5 Speaker Replacement

Difficoltà

Moderate

Passi

9

Tempo Necessario

20 - 25 minuti

Introduzione

In order to have success when attempting to replace the speaker, be sure to remain patient and use caution when disconnecting various parts of this device.

  1. lYJlZtZM622cqScp
    lYJlZtZM622cqScp
    YlkMDbOUFChZLj64
    KxD5CqVNYtLNyw1v

    • Power off and unplug the Amazon Echo Show 5. Failure to do so could result in injury or damage to the device.

    • Orient the Amazon Echo Show 5 so that the display is face down.

    • Use a spudger to remove the grey bottom cover.

    • During reassembly, adhesive needs to be applied to secure the bottom cover.

  2. xW5Cgq6iWWQpLBgG
    xW5Cgq6iWWQpLBgG
    yrbgGfZjqPqcLwU2

    • Remove the three screws with a T6 Torx screwdriver.

  3. MrYrPj6FuYIbsBYQ
    MrYrPj6FuYIbsBYQ
    W11SGrAZJ2fh5Jqx
    bFvSVfoKwBk1nWnP

    • Use a spudger to release the six internal tabs lining the sides of the device.

    • There are fragile ribbon connectors along the side of the screen with the camera on it. So, do not stick the spudger more than a couple millimeters into the device.

  4. 3iAlPJOQQcoUQw26

    • Carefully open the device by folding it open along the top edge where the camera is located.

    • Do not try to open the device from any other side as this would damage the ribbon connectors.

  5. pADGgoX5xnmUQvAh
    pADGgoX5xnmUQvAh
    i1jaxInaPHl63kWQ
    6ICBrgNJrQNMPvnm

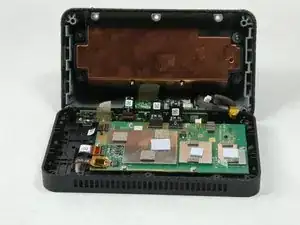

    • Carefully disconnect the red and black power connector.

  6. JYG3GLW156KAASbu
    JYG3GLW156KAASbu
    MdH2Jl63VN2rQHF2
    ZZJQgnScC6ZiSIGL

    • Remove the three ZIF connector ribbon cables that connect the speaker housing to the display housing.

    • Do not pull ribbon cables straight out, as this will damage the device. To safely remove ribbon cables, pull up on the tab where the cable is going into.

  7. FoK6IcYieD1u2cby
    FoK6IcYieD1u2cby
    Car3SgJe3rXXsfCy
    XjNnIy4ZqSCkhO4k

    • Remove the four screws securing the speaker using a T6 Torx screwdriver.

  8. YDftWe6CRplrI1i1
    YDftWe6CRplrI1i1
    mBcYVlShYvGIgGqk
    jCCeDonKkrlReYQW

    • Pull back the silver tape.

  9. kQPGV5lGZOcOSmlV

    • Carefully pull out the speaker housing from the black ledge.

Conclusione

To reassemble your device, follow these instructions in reverse order.
