Introduzione

This guide details how to replace the dock inserts of the Apple iPod Hi-Fi speaker system.

  1. xPiUZShFaV3uAwKk

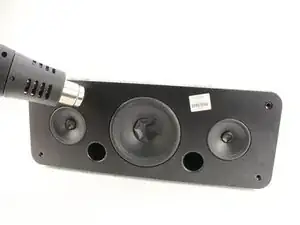

    • Warm up the glue by using the hair dryer on the grille for 5-10 minutes.

    • You can skip this step if you don't have access to a hair dryer. However, if you skip this step, the next step will take longer and will be harder.

  2. 4cymR2SLelpWYgc5

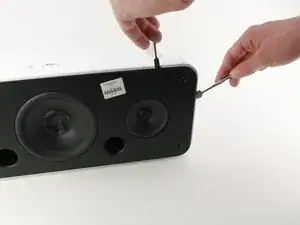

    • Take one spudger and fit it under the grille.

    • Use your first spudger to pry up and make room to insert a second one.

    • Sever the glue connections between the grille and the device by moving one spudger around, cutting through the glue.

    • Use the other spudger to raise the grille, allowing you to see where you're working.

    • Since you're cutting the glue, the grille may not stick as well when reassembled.

    Antes de poner de vuelta la placa de aluminio con el mismo secador de aire caliente puedes calentar los restos de pegamento adherido y lo montas . Pones la rejilla de tela en su lugar y lo dejas una hora apoyado con la parte trasera mirando hacia arriba.asi el pegamento recalentado y con la presión del peso del aparato hará que se adhiera.

    Olga Ona -

  3. GLgIpiYOxJQHSmEd

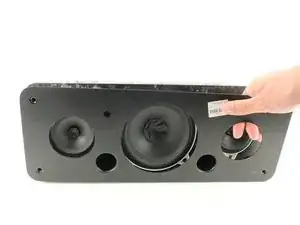

    • Pull the grille off the Apple iPod Hi-Fi with your hands.

  4. XLOZV3ofbWXCfuuH
    XLOZV3ofbWXCfuuH
    kturIy1WEGKDDIXm

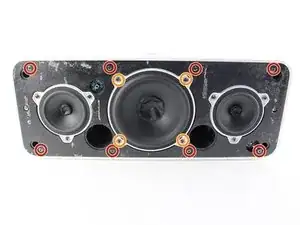

    • Remove all eight 3.3mm JIS #1 screws holding the front panel in place by placing the screwdriver in the head of the screw and rotating counterclockwise.

    • Remove the four 3.3mm JIS #1 screws holding the large speaker in place by placing the screwdriver in the head of the screw and rotating counterclockwise.

  5. pGRAdcZZQPQLHCgg
    pGRAdcZZQPQLHCgg
    XrkFNvy3gJRcW24E

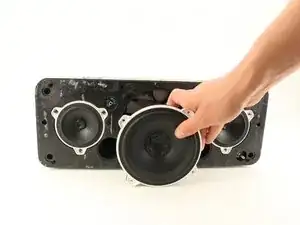

    • Pry out the large speaker with a metal spudger around the edge.

    • Remove the speaker slowly from its socket with your hands.

    • Turning the speaker on its side will make this step much easier.

    • The speaker is still attached by several connections at this point so the speaker will not be able to be removed completely at this step.

  6. wplDaHqGEv6WclAN
    wplDaHqGEv6WclAN
    jYiMqrgLYKxchKUK

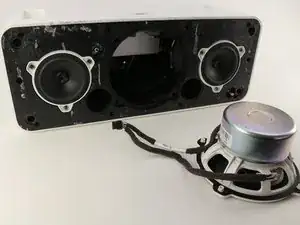

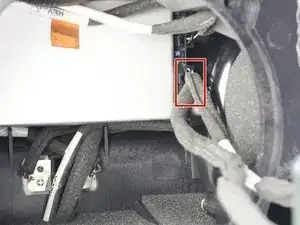

    • Press down on the tab and pull out with your hands to remove the cable connecting the large speaker from the rest of the unit.

    • Pull the large speaker completely out and set aside.

  7. JTHhqAshqPNPGZMZ

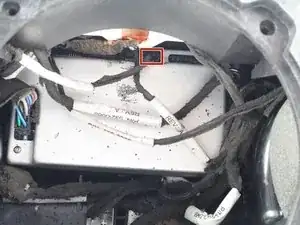

    • Remove the sensor connection by pulling it straight out with your hand.

  8. wAy5thWn3ZJl3Zmd
    wAy5thWn3ZJl3Zmd
    OqojVbnlnGKJNAcv
    MYvEoW2diaCySmQQ

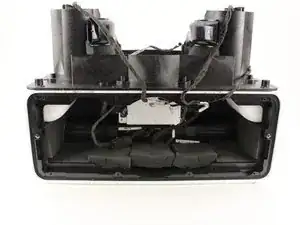

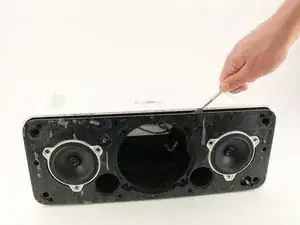

    • Pull the entire front assembly off by prying it up with the spudger and lifting the assembly off with your hands towards the top of the Hi-Fi.

    • There are still connections attached at this stage so the front assembly will not completely disconnect from the rest of the device .

  9. PYHn3LLdJHbs2hLb
    PYHn3LLdJHbs2hLb
    X6WHybEj6hEgYyeX

    • Remove the clips for the remaining two speakers by repeating step 6.

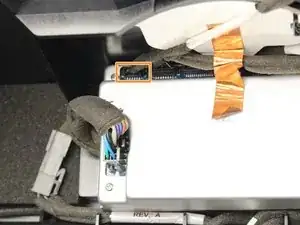

    • Remove the last connection that connects the speakers to the power box.

    • Remove the front panel completely.

    • When reassembling, the ports are labeled "right" and "left" to help you plug in the right speaker to the right port.

  10. lGUHkc4gGLPNMXuw

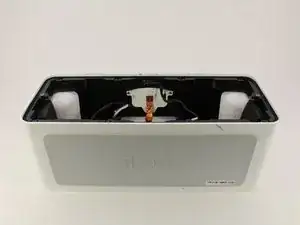

    • Place the speaker on its back with the dock facing away from you.

  11. b1rfK1K3hxnBCBEY

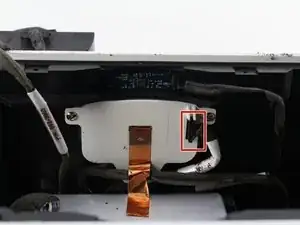

    • Remove the cable connected to the dock insert by pulling the cable straight out.

  12. bxldhsHKe6dMUDDQ
    bxldhsHKe6dMUDDQ
    FULOE3rOmShDHNj6

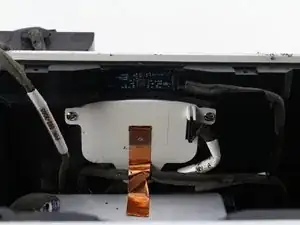

    • Remove the gold tape attaching the insert to the unit.

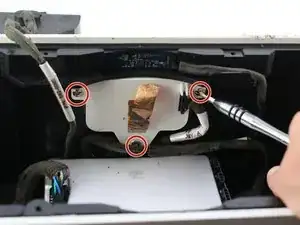

    • Remove the three 2mm Phillips #1 screws holding the dock inserts in by placing the screwdriver in the head of the screw and rotating counterclockwise.

  13. jUCiCEBTHSX6AuHi

    • Remove the dock insert with your hands.

Conclusione

To reassemble your device, follow these instructions in reverse order.
