Apple iSight Webcam Privacy Lens Replacement

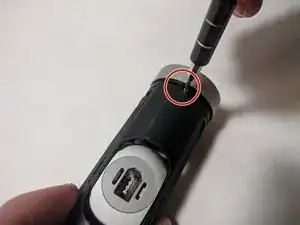

Remove two 3.55 mm screws that hold the body to the ball and socket joint using the PH000 screwhead.

Insert the tweezers into the crevice of the ball and socket joint, and prop up the tabs to remove the white ring from the body.

Press the Apple logo through to pull apart the body frame from the body of the webcam.

Remove the end cap with the Apple logo by simply pulling it off.

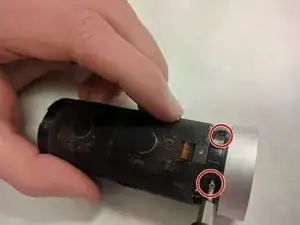

Unscrew the 3 (3.55 mm) screws surrounding the black casing near the camera-lens.

Using tweezers, remove the netting that surrounds the black casing.

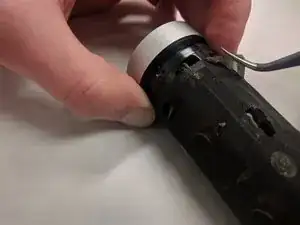

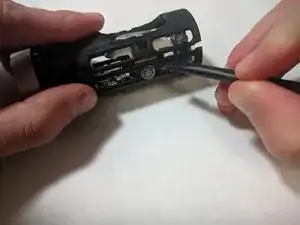

Pry open the top of the black casing and pull it off.

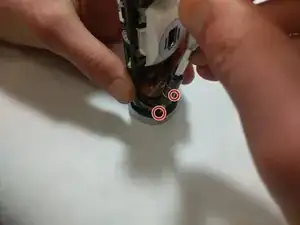

Unscrew 2 (4.41 mm) screws seen in the picture that surround the attachment of the lens to the main body.

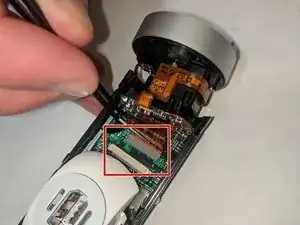

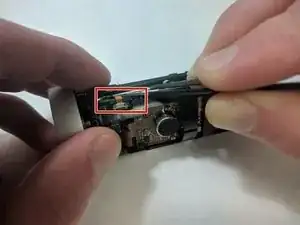

,Pull the loose circuit strip from its connection using tweezers.

Do this for the side connection as well. This enables the entire camera lens section to come off.

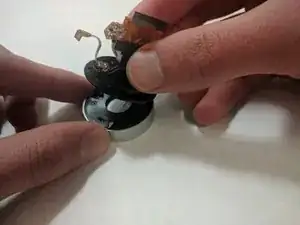

Pull the camera lens section off the main body.

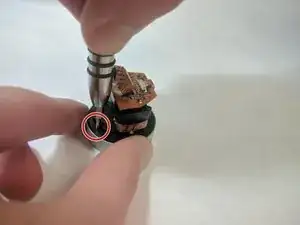

Unscrew the final (4.41 mm) screw that connects the lens circuitry to the aperture.

Then pull off the circuitry top section.

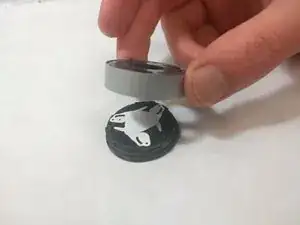

Pull off the top piece of the lens aperture.

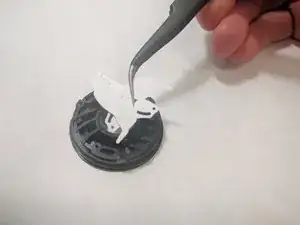

Finally, remove the privacy lens using tweezers.
