Introduzione
Questa guida mostra come applicare l'adesivo specifico per il gruppo display a un iPad.
Strumenti
-
-

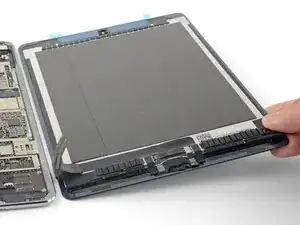

Prima di installare il nuovo adesivo, pulisci con cura il gruppo display e la scocca da ogni residuo di colla.
-

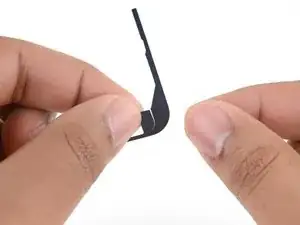

Usa delle pinzette per tirare via pezzi di nastro residuo.
-

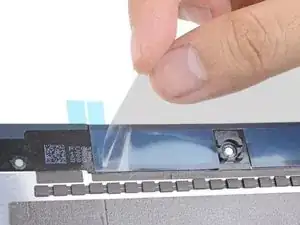

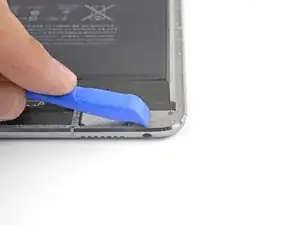

Usa uno strumento di apertura o uno spudger per raschiare via i residui. Per ammorbidire l'adesivo, puoi usare alcol isopropilico ad alta concentrazione (oltre il 90%).
-

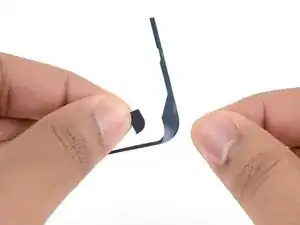

Rimuovi quello che resta sfregando in una sola direzione per evitare di spalmare l'adesivo sulla superficie.
-
-
-
Disponi le strisce adesive sostitutive attorno al gruppo display in modo che corrispondano ai rispettivi lati.
-
-
-

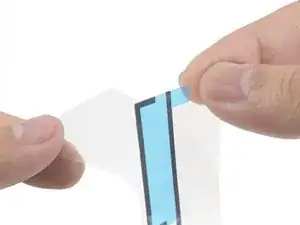

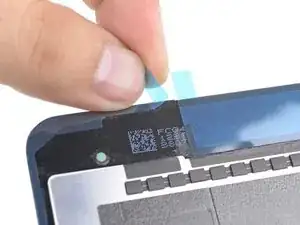

Stacca e rimuovi lo strato adesivo in plastica superiore dalla striscia di sinistra.
-
Stacca e rimuovi dalla striscia la protezione inferiore in plastica.
-
-
-
Se ci sono altri pezzi di adesivo sulla striscia che non servono per il tuo particolare modello di iPad, rimuovili adesso.
-
-
-
Allinea la striscia adesiva di sinistra al bordo sinistro del gruppo display.
-

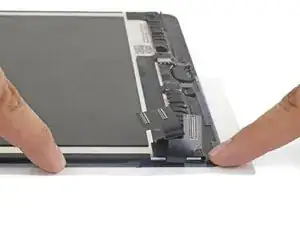

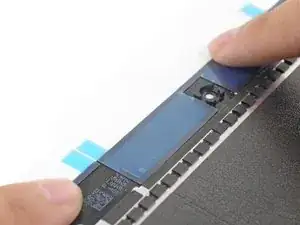

Iniziando da un angolo, disponi la striscia adesiva sul gruppo display e premi nella sua posizione la striscia stessa.
-
-
-

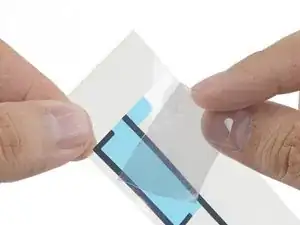

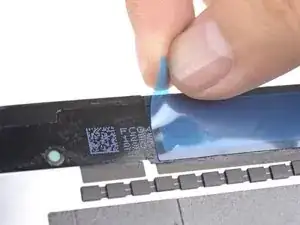

Stacca e rimuovi dalla striscia lo strato adesivo superiore in plastica.
-
Stacca e rimuovi dalla striscia la protezione inferiore in plastica.
-
Allinea la striscia adesiva al bordo destro del gruppo display.
-
Iniziando da un angolo, disponi la striscia adesiva sul gruppo display e premi nella sua posizione la striscia stessa.
-
-
-
Stacca e rimuovi dalla striscia lo strato adesivo superiore in plastica.
-
Stacca e rimuovi dalla striscia la protezione inferiore in plastica.
-
Allinea la striscia alla parte superiore del gruppo display in modo che la linea dritta riempia l'interruzione tra le strisce di sinistra e di destra.
-

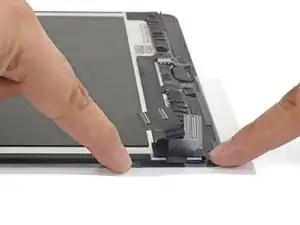

Premi la striscia nella sua posizione.
-
-
-

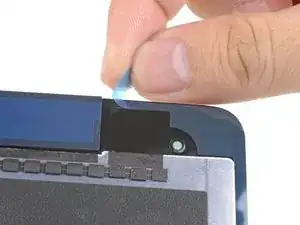

Stacca e rimuovi la plastica trasparente di irrigidimento da tutte e tre le parti di striscia adesiva.
-
-
-
Stacca e rimuovi dalle strisce le tre protezioni in plastica colorata per esporre l'adesivo.
-
Chiudi il dispositivo e disponi alcuni libri pesanti su di esso per trenta minuti per favorire l'incollaggio del nuovo adesivo.
-
La riparazione non è andata secondo i piani? Vai sulla nostra comunità Risposte iPad per trovare aiuto nella risoluzione dei problemi.
10 commenti
Thanks, I was able to fix my wife’s shattered digitizer screen on the iPad 6th gen with this guide!
I managed to get it done, but this was a personal nightmare for me and more difficult than replacing the battery in my ipad. There are too many instruction that say “remove plastic” and I have no idea which layer; there was nothing on the packaging to indicate which side was up or which side was the front and I ended up guessing the wrong direction because it “looked” right, but wasn’t. A simple sticker on the packaging indicating a direction would have removed all of the frustration. I only managed to figure it out by removing all of the plastic so that the sticky side of the adhesive was exposed and then I could finally see how it was supposed to fit and how I was supposed to press down with the other side of the plastic to push the adhesive side into the frame.
Fixed a cracked iPad 4 mini screen; I agree with twizzlercraze72. Some kind of labeling would have saved so much peeling and re-sticking. I ended up with a gap next to my home button. An expensive lesson to learn.
I followed these instructions and used 99.9% isopropyl alcohol to clean off the glue around the display - but the isopropyl leaked under the screen and ruined it! Replacement screen more than the iPad’s worth. Use tiny amounts and don’t allow for any seepage, or try to manage without and just carefully scape. My iPad’s now a write-off… :-(
Alex Harness -
Hi Alex!
I’m really sorry to hear about your experience. Can you describe a little more how the alcohol ruined the screen? This info can help with future guides!
Arthur Shi -
Use goof off or xylene on cotton swab outdoors to remove adhesive. Do it outside so you don’t smell up the house. Better than rubbing alcohol.
macman2 -
Goof-off will unfortunately leave a residue that can eventually weaken the replacement adhesive. Be sure to fully clean off the surface with alcohol after you use Goof-off.
Arthur Shi -
I used a hair dryer to soften the adhesive.
OK, you still leave a very small, microscopic, layer of adhesive after removing the black tape, but really, new tape will still stick to that. We’re not trying to make the iPad water proof - we’re simply trying to make the components secure and not fall apart. Shame Apple couldn’t have used screws instead!
Billinski -
Used CRC Brakleen PRO SERIES. Applied sparingly with a Q-tip 2 inches at a time. Softened the adhesive was easily squeezed off with a plastic spudger.
dklj -
