Asus ROG Strix GL553VD Battery Replacement

Scritto Da: Mahmoud Mehdi
  • Commenti: 1
Asus ROG Strix GL553VD Battery Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

20 minuti

Introduzione

This is a simple guide on how to replace the battery in your Asus ROG Strix GL553VD gaming laptop.

Lithium batteries such as the one inside your gaming laptop deteriorate over time, losing their ability to hold a charge. This may not be a problem if you use your gaming laptop plugged in most of the time, but if you travel with your laptop and notice the laptop holding less charge and lasting for less time while on battery power, a battery replacement may restore some of the functionality of your laptop.

Happy fixing!

  1. OBCOJ1Kg44m5HkNa
    OBCOJ1Kg44m5HkNa
    naGCf2dVNyCauvuc

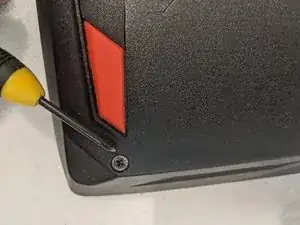

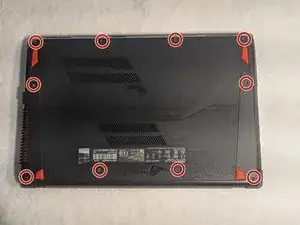

    • Use a JIS screwdriver to remove the ten 4 mm screws from the bottom cover.

  2. lpeBKOmvUATXMTmj
    lpeBKOmvUATXMTmj
    TcOuCsJNKpXeALWs

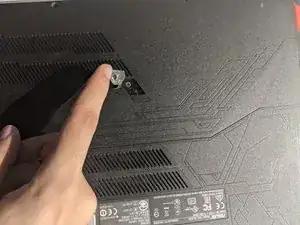

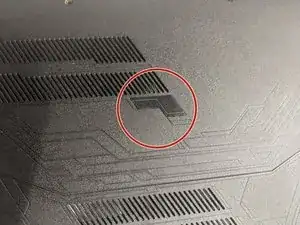

    • Open the flap in the middle to reveal the 11th screw and remove it using the same JIS screwdriver.

  3. hwhXYoUtxUmOtd4i
    hwhXYoUtxUmOtd4i
    aOoFLTUeoWwL1lRv
    WGnK6iMjVorJl5Zr

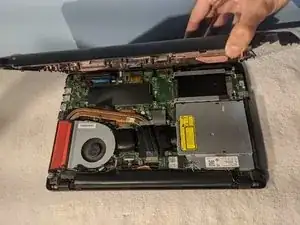

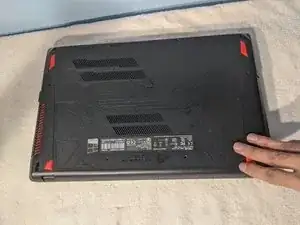

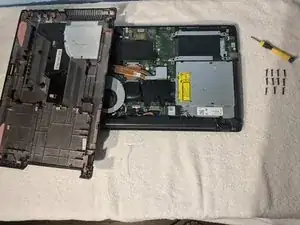

    • Gently lift each corner to remove the cover from the laptop.

    • If you seem to have difficulty removing the cover, you may use a plastic opening tool to pry up one of the corners to get you started.

  4. sTLQS6eQro45ondA
    sTLQS6eQro45ondA
    QIA3uYFuoBC5eD14
    W6VdyAHCN4aVOJOZ

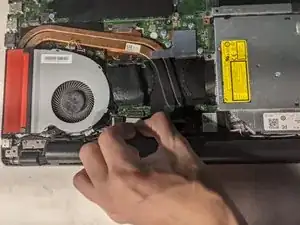

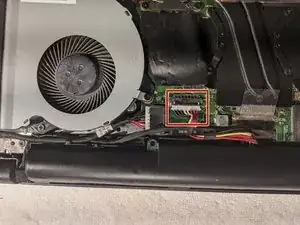

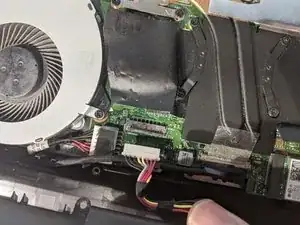

    • Gently pull the white battery connector out towards the battery.

  5. OUquTPCjxCM2oVvs

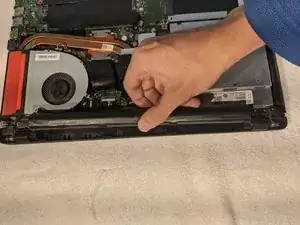

    • Carefully lift the battery out from the case to remove it.

    • The battery will come off easily as the screws are already removed.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Mahmoud Mehdi

Membro da: 20/09/20

247 Reputazione

Un commento

Thank you for the guide. It was tricky to find the screw in the middle, hidden behind the flap. The screws are however not torx as shown.

Soheil Roshanbin -
