Asus V6800V Hard Drive Replacement

Difficoltà

Easy

Passi

3

Tempo Necessario

Nessuna stima

Introduzione

  1. oSWZeCDNSEJyKIB2
    oSWZeCDNSEJyKIB2
    l55N15DildwUGtP3

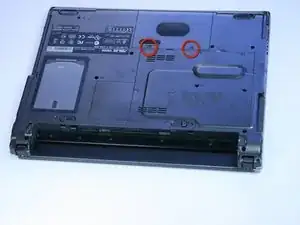

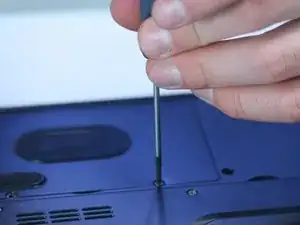

    • Remove the two screws using a Phillips #0 screwdriver.

  2. 3KtDUxkF2RdrPOtS
    3KtDUxkF2RdrPOtS
    gfRkTVJyZiTWTImR

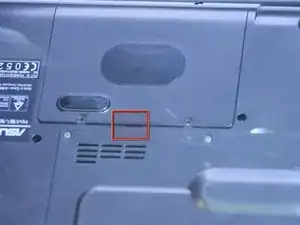

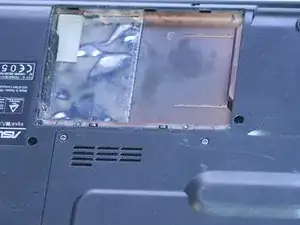

    • Pry open the case using an iFixit opening tool.

    • Actual hard drive is not shown in the second image.

  3. XXhx5GMpRnGUbS3N
    XXhx5GMpRnGUbS3N
    D2QlQTDyTWLXbPhU

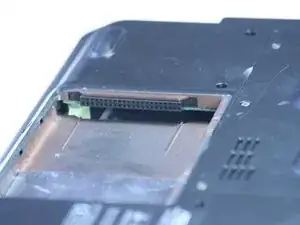

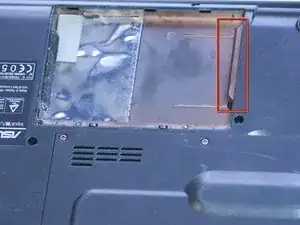

    • The highlighted area is where your hard drive would be. Slide it out away from its slot and pull it gently to remove.

    • Second image shows what it should look like once you remove the hard drive.

Conclusione

To reassemble your device, follow these instructions in reverse order.
