Atari 5200 Controller Flex Board Replacement

Scritto Da: Zach Petryszyn
  • Commenti: 0
Atari 5200 Controller Flex Board Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

30 minuti - 1 ora

Introduzione

One of the most common issues with the Atari 5200 is faulty controller wiring- a controller's buttons will become unresponsive, hard to press, or even stuck in place. This guide will cover replacing the entire circuit board for the buttons, reseating each button to ensure proper contact and operation of each button.

  1. VFcDnIXX1BnRp4BR
    VFcDnIXX1BnRp4BR
    XaMTQqIYkM36veu4
    rtUQP4bv3GAiScdV

    • Turn the controller over, exposing the three screws on the back. Use a 6mm screwdriver to remove these screws.

    • Carefully slide and pull the two parts of the controller shell apart, exposing the innards.

    • Try not to move the joystick when reassembling. This will almost assuredly break your alignment. The less the joystick is moved, the easier it will be to realign the joystick to the pots.

  2. RoDYt3rknYGL3YjM
    RoDYt3rknYGL3YjM
    1dvHDs5cfAj5TBFI
    s4CTJGrenLD6Pfas

    • Slide out the strip of the board connected to the controller's START, PAUSE, and RESET buttons.

  3. ktiUiDhMWvDx5fK5
    ktiUiDhMWvDx5fK5
    mgY1XbKAoykqaXZe
    E4BlZFLvDpAKd1ak

    • Peel off the old circuit board.

    • The buttons should fall out/be removable.

    • Disconnect it from the wire connector.

  4. oa5ArStEUpGoRYQl
    oa5ArStEUpGoRYQl
    2LLxZgHPnPIU3XU3
    yO21rLSMvS6TUrfg

    • Place the new circuit board where the old one was.

    • Glue/tape it in places where the previous board was held.

    • Connect it to the wire connector.

  5. oJU3DFYANhLscXUl
    oJU3DFYANhLscXUl
    2aNrMBceqgcQWxPN

    • Use a spudger to remove the top frame.

    • Take off the plate.

    • Remove the rubber buttons.

  6. SL3AHhuPQE6obVRZ
    SL3AHhuPQE6obVRZ
    xMvCYahWenCfDD5N

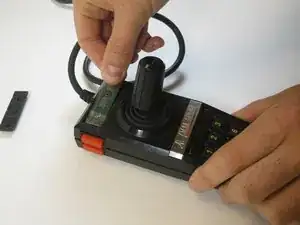

    • Pull the circuit strip through the new space.

    • Realign the top and bottom of the controller.

  7. 3x6BpDogiZTDXdeg
    3x6BpDogiZTDXdeg
    3KYnI2IrB6qPegYO
    AMQ3MqWLDjNIM5DP

    • Return the buttons to the top of the controller.

    • Snap the frame back into place.

    • Screw the Screws
