Baby Einstein Take Along Tunes Battery Socket Replacement

Scritto Da: Shreya Sunny
  • Commenti: 0
Baby Einstein Take Along Tunes Battery Socket Replacement

Difficoltà

Moderate

Passi

12

Tempo Necessario

10 minuti

Introduzione

In this guide, you will learn how to replace the battery terminals

  1. h6RqwiFSHcnNnuAM

    • Set the device on it's face with the back facing up.

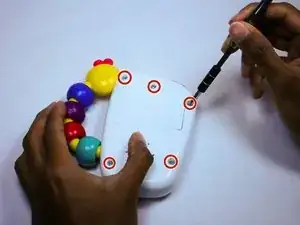

  2. 1ODFZM3VBNMjFiRK

    • Begin by removing all highlighted screws with a using a Phillips #1 Screwdriver.

  3. QLKDIY1aMGrujbwH

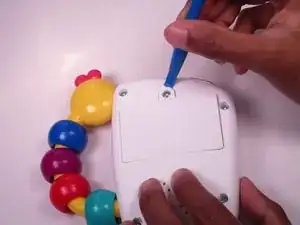

    • Remove the battery plate with a plastic opening tool and set it aside.

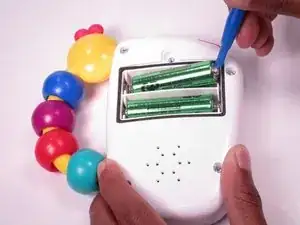

  4. lRklc1xEUirGZNPy

    • Remove each battery with a plastic opening tool and set them aside.

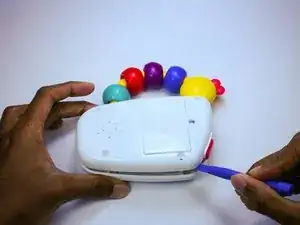

  5. 2FDjIIvNZkK4RSbP

    • Separate the device in two parts by using the plastic opening tool.

  6. 2FKeG6IEv5b2mukG

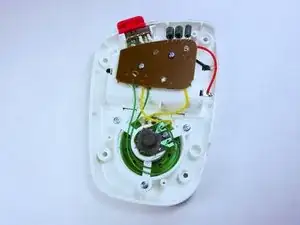

    • Remove the top piece and place it aside, keeping the bottom half with the mechanics.

  7. 3MCbkEGWIrlt5pHd

    • Remove the highlighted screws using a Phillips #1 Screwdriver.

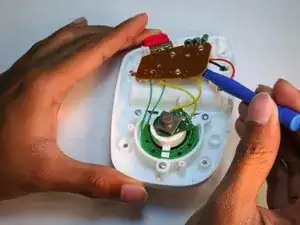

  8. 54ApmX6jwrqhAen3

    • Use the plastic opening tool and carefully set the LED panel to the side, exposing the wires underneath.

  9. gwmwbsSEMwTwQtdN

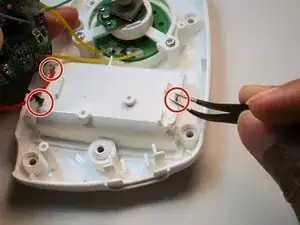

    • With the precision tweezers, straighten the metal connectors to remove the terminals from the other side.

  10. LCy5cbRDWJ2fvNQf
    LCy5cbRDWJ2fvNQf
    PhONxLtsesJABIyu

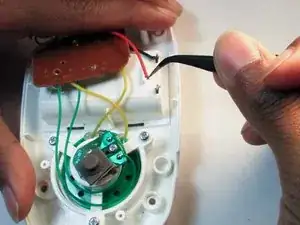

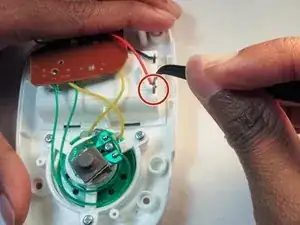

    • Sever the red wire from the metal connector with the precision tweezers.

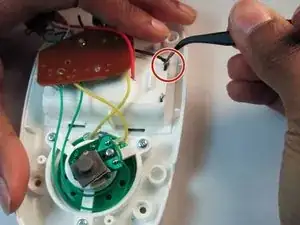

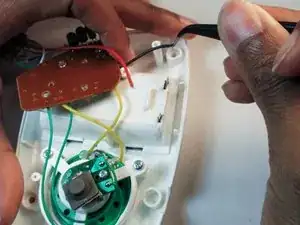

  11. askY6RK3FbDknrPu
    askY6RK3FbDknrPu
    YPhMBtIRcEXCCrmB

    • Sever the black wire from the metal connector with the precision tweezers.

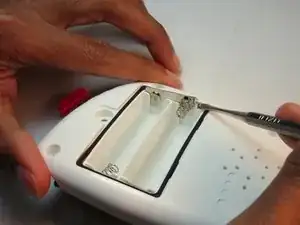

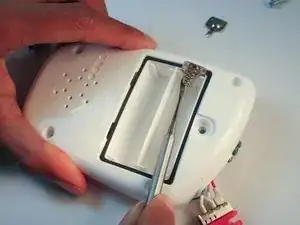

  12. L1J1o1dFQjY5Xn5J
    L1J1o1dFQjY5Xn5J
    dNyLFGVkkPYUYp3a

    • Flip the device on its face and remove the battery terminals with a metal spudger.

Conclusione

To reassemble your device, follow these instructions in reverse order.
