Beats Solo 3 Left Hinge Replacement

Scritto Da: Samuel Moore
  • Commenti: 3
Beats Solo 3 Left Hinge Replacement

Difficoltà

Difficult

Passi

15

Tempo Necessario

45 minuti - 1 ora

Introduzione

This guide explains how to replace the left hinge of the Beats by Dre Solo3 headphones. The model number of these headphones is A1796. A faulty hinge is one of the leading causes that render these headphones unusable. Although the hinge is a simple component of the headphones, this repair is not for the light-hearted and will definitely take some time and technical skill to complete.

Required special skills:

  • Soldering/desoldering the wires
  • Screwing/unscrewing the screws

Note:

  • Using a plastic or nylon pry tool is highly recommended when taking apart the device to ensure no damages occur.
  • Before beginning, make sure to power off your headphones completely and disconnect from any external power source.
  • Be extremely cautious when working around the wires because if they are nicked or damaged during the repairing process the device will no longer be useable and is a fire hazard.
  • For more information on soldering, refer to this How to Solder and Desolder Connections guide.

  1. hkAnHbJ6mdcbZXlV

    • Use a spudger or opening tool to peel the earpad away from the left earcup.

    • Remove the tape around the earcup.

    • Make sure to do this step gently to avoid damage to the headphones.

    • Using a plastic or nylon prying tool is recommended to avoid damaging the device.

  2. 41Cvui1PuJdXGLyw
    41Cvui1PuJdXGLyw
    oDvupAXBFFHSRChS

    • Use a Phillips #00 screwdriver to remove the three screws from the left earcup.

    • Gently remove the speaker.

    • The speaker is connected to the motherboard by soldered wires so don't pull or yank the speaker off the earcup.

  3. MPqBurdBSMXhGOaI
    MPqBurdBSMXhGOaI
    rdH4Mk4ttUXlVgqH

    • Use a Phillips #00 screwdriver to remove two 0.4 mm screws that are holding down the audio jack's circuit board.

    • Use a set of tweezers to gently pull out the audio jack board.

  4. YnZrkEXjaQZCaNId
    YnZrkEXjaQZCaNId
    1IMnO1lhsrakADbZ

    • Use a soldering iron to desolder the seven wires attached to the audio jack board from the the left ear cup.

    • The two wires coming directly from the speaker to the audio jack do not need to be desoldered.

    It will be impossible for a normal human to even see let alone resolder these. DON'T WASTE YOUR TIME

    Jeff Gold -

  5. TlE2veqCAAqOGnZi
    TlE2veqCAAqOGnZi
    QSQTND6OXASMmudv

    • Use a prying tool to separate the headphone cover.

    • Gently pry up and around the cover to ensure it comes off without breaking.

    • A plastic or nylon prying tool should be used rather than a screwdriver or metal spudger.

  6. WTPjYJLe5fMNPOgN

    • Now that the outer and inner panels are separated, pull the desoldered wires through the back of the inner panel.

  7. aVS4PhWGgJoKRNA3

    • To disconnect the three bundled connectors from the circuit board of the outer panel, pull the cables away from the socket in the same direction as the individual wires.

    • Pull evenly on the full width of the cable so that no individual wires are overly strained.

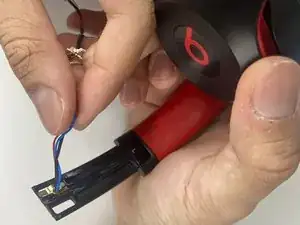

  8. vCMI5IxqHQ4YtLk4

    • Gently pull the wires glued to the headband up.

    • You may use a small pry tool to wedge under the wires.

  9. 5oRfqLP2ZfdBKHal

    • Pull back the rubber surrounding the left hinge.

    • Use a Phillips #00 to remove two 0.3 mm screws from the left hinge.

  10. 6bmbeQfFRv5jwtvV

    • Pull the hinge out from the headband.

    • If the hinge is severely broken, it may come out in several parts.

  11. SfA2wvLKLwSiNSBY
    SfA2wvLKLwSiNSBY
    S6EgYFoCD1nZZQky

    • Fold the hinge and expose the metal pins holding it in place.

    • Use a set of tweezers to remove one of the metal pins.

    • Keep it for later use.

  12. AeoSUeNRBiiHFyVN

    • Separate the hinge from the bracket and remove them from the wires.

    The little bundles connectors don't fit through hole in the bracket. TOTAL WASTE OF TIME TRYING TO FOLLOW THESE INSTRUCTIONS

    Jeff Gold -

    and trying to resolder the tiny wires to the circuit board will be impossible.

    Jeff Gold -

  13. jlWHEOPKdENIWsnL
    jlWHEOPKdENIWsnL
    ZIX2uGZt3mu3CcPL

    • Take your replacement hinge in hand and use tweezers to insert the copper plate it comes with.

    • Push the plate down into the hinge's inner groove.

    • This may require some force.

  14. oroLGaJybiLNCZpR
    oroLGaJybiLNCZpR
    1ebQxbeia16LZnhi
    fWiJa6DkiLSuNYRq

    • Feed the wires through the new hinge and bracket.

    • Clip the hinge and bracket together.

    • Fold the hinge and carefully insert its metal pin.

  15. qFhGtIX12QFoamFS
    qFhGtIX12QFoamFS
    VlLf4kZ3WHXbA2PF

    • Insert the hinge into the headband.

    • Pull back the rubber surrounding the hinge.

    • Use a Phillips #00 screwdriver to replace the two 0.3 mm screws that fasten the hinge to the headband.

    • Congratulations you have replaced the hinge! You may cycle back through the steps to complete reassembling.

Conclusione
  • To reassemble your device, follow these instructions in reverse order.
