Belkin NetCam HD Switch Cover Replacement

Scritto Da: Destinie DiazVerdejo
  • Commenti: 0
Belkin NetCam HD Switch Cover Replacement

Difficoltà

Moderate

Passi

9

Tempo Necessario

8 minuti

Introduzione

This guide walks you through how to replace the switch cover on the NetCam.

  1. dINkYTvgMHGxInCZ

    • Use a wrench to loosen up the stand from the back in order to hold the NetCam more comfortably.

  2. plCkaNnbG3sgVpIY

    • Work a plastic opening tool into the seam and pry the face plate away from the back panel.

  3. 4tDMKHJx2HUaEU6t
    4tDMKHJx2HUaEU6t
    uppIOY2OIEI4SKKV

    • Use pressure to separate the covers.

    • When pulling the device apart, separate from the bottom up in order to avoid pulling the wiring at the top apart.

  4. xO52Mpaoei6XZNBQ

    • Carefully use your fingers to gently pull out the white attachment from the tan colored part.

  5. AlM6MljPWxDnQijd
    AlM6MljPWxDnQijd
    fTZeJBHUDcspiJLC

    • Use a Phillips #0 screwdriver to take out the two 1.2 mm screws on the board.

  6. dmoNfZW4ZWNWYSbv
    dmoNfZW4ZWNWYSbv
    YSNMuyTiXw5OuXgA
    MI2VcIbGbbQZlQLE

    • With your fingers, pull the circuit board out of the back casing.

    • When pulling the board up be sure to do so carefully so you do not break the cord which is attached on the back side.

  7. geKTrOQTD1V6vEkL
    geKTrOQTD1V6vEkL
    HS5cQKR2mkfSLXKU

    • Gently pull the speaker out of the holder from the back of the cover.

  8. RqpoOWdZLqNoSDmi

    • The speaker wires are attached with the board. It can be unattached gently by pulling out the white attachment from the port.

  9. 1AOAPaoOZNIQ6Vfu
    1AOAPaoOZNIQ6Vfu
    cSJIC2QPRC4axDj2

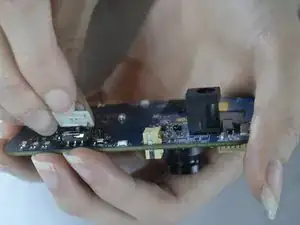

    • On the back of the board pull the switch slowly upward to take it off.

Conclusione

To reassemble your device, follow these instructions in reverse order.
