Introduzione
Use this guide to remove the rough coil of the Bendix Magneto.
The magneto provides electrical energy to to fire a spark plug. It utilizes a rotating magnet to generate current through a coil. A bad rough coil can cause the aircraft engine to run poorly and shake.
The magneto should be routinely checked after every 500 hours of use.
Strumenti
-
-
Use a #2 Flathead screw driver to remove the five screws on the body of the magneto, indicated by the red circles.
-
-
-

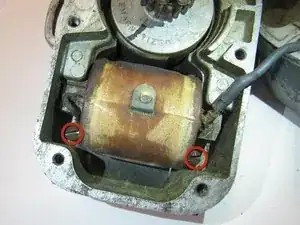

Locate the two screws on the right and left side of the primary circuit.
-

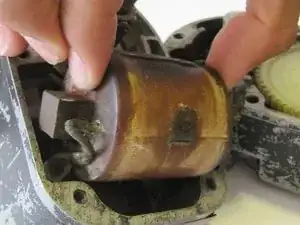

Remove the screws using a #2 Flathead screw driver.
-
Conclusione
To reassemble your device, follow these instructions in reverse order.
