Is your Bissell SpotClean ProHeat 5207U spray trigger difficult to use? It could be because of a failing spray mechanism. Follow this guide to replace the spray mechanism for your Bissell SpotClean ProHeat 5207U.
Strumenti
-
-

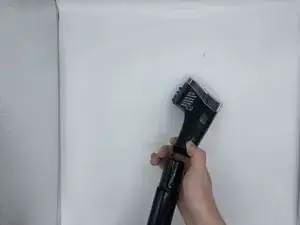

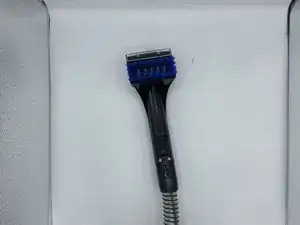

Place the brush in front of you and make sure that the brushes are rotated towards the ceiling.
-

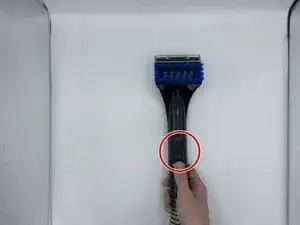

Separate the brush from the hose by pressing the lever.
-
-
-

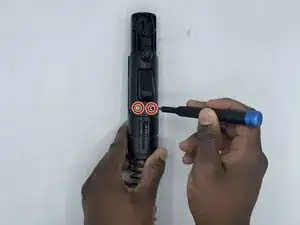

Using a Phillips screwdriver, unscrew the two 12.8 mm screws on the lever cap.
-

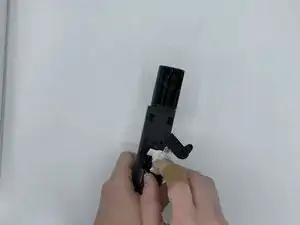

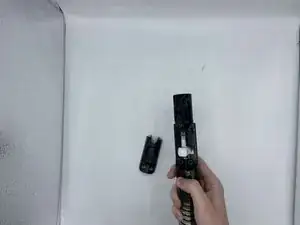

Remove the cap on top of the spring mechanism.
-
-
-

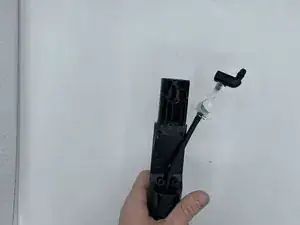

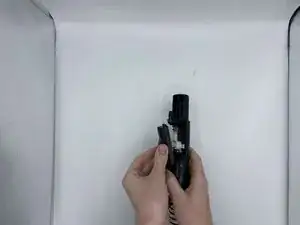

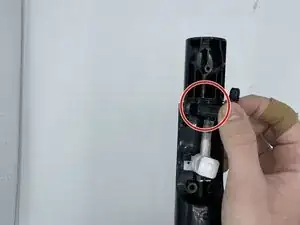

Grab the spraying mechanism and separate it from the lever by pulling it back.
-

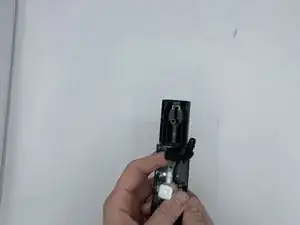

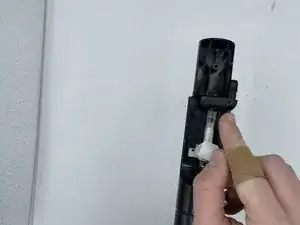

Rotate the spraying mechanism clockwise to fully separate it.
-
-
-

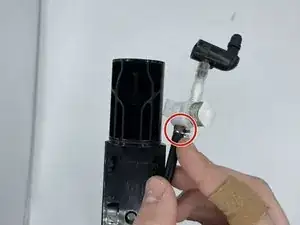

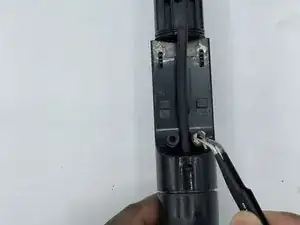

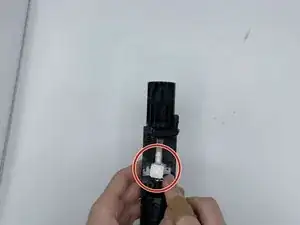

Using tweezers, squeeze the hose clamp prongs together to loosen it.
-

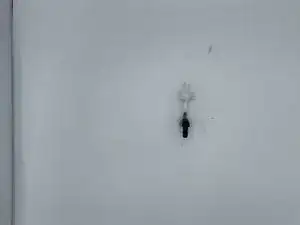

As you are squeezing the hose clamp prongs, pull the spraying mechanism out to remove it.
-
Once the spraying mechanism is removed, and squeeze the clamp prongs again and install the new mechanism.
-
To reassemble your device, follow these instructions in reverse order.
