Boombotix Boombot Mini Speaker Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

Nessuna stima

Introduzione

Use this guide to replace a speaker in the Boombotix Boombot Mini.

  1. KeRsKSYmyZvsHxgj
    KeRsKSYmyZvsHxgj

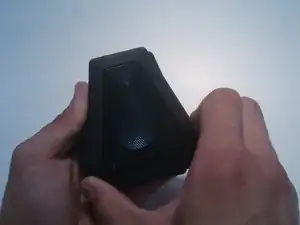

    ZLcDlEcijvyYVDKY
    6vNsQAuixbpyQbaB

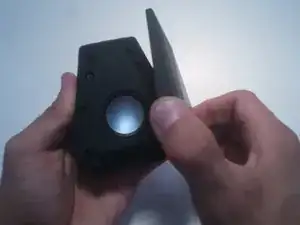

    • Twist the front panel of the speaker to the left.

    • Do not try to pry or pop off the front panel.

    How do u put the speaker “ back ” back on?

    booskii da problem -

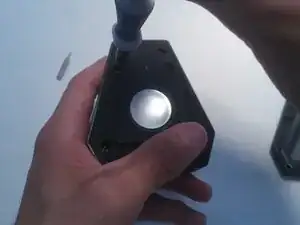

  2. FahknCfFVWIPmZHK
    FahknCfFVWIPmZHK

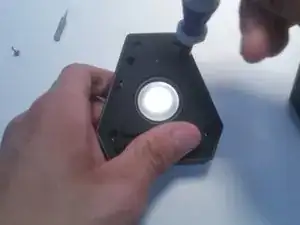

    JsPUiaIA2num4PkV
    55IWqN2bB6KieSn2

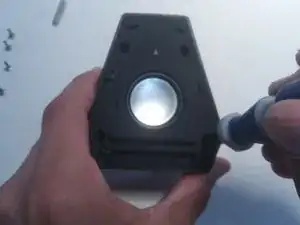

    • Take out the four screws, then remove the panel that contains the speaker.

  3. WBU44kLxxbJvlBlG

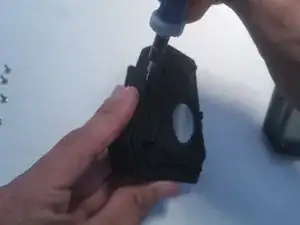

    WBU44kLxxbJvlBlG
    2EBFiYxPhwwWg2FX

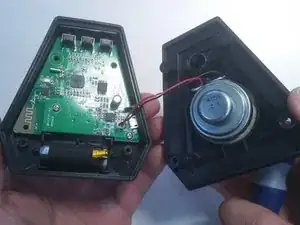

    2U2pVhm1DXOp1GBf

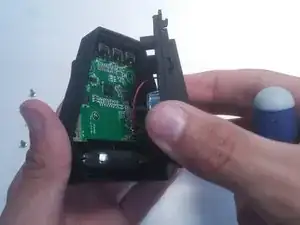

    • Take the speaker off of the base.

    • Expose the motherboard and place the speaker next to it.

    • Be careful not to tangle or damage the wires connecting the speaker.

    • This panel will be harder to get off. Use something small such as a card to creat a lip for leverage.

  4. hygrUmqStYwlNbhB

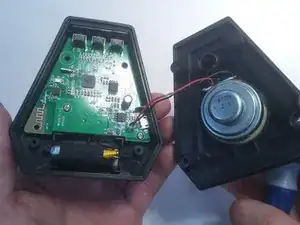

    • Find the connection of the speaker by following the wires.

    • Do not damage the battery. Make sure not to use any metal object to poke around in the device because of possible shock.

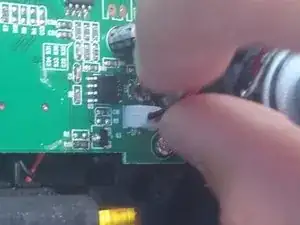

  5. vUYxEEJ1j4QwGd2D
    vUYxEEJ1j4QwGd2D

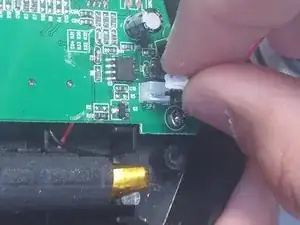

    3sFfpKCsbAR3sfDW

    • Now that you have found the wire connection to the motherboard, disconnect it.

    • Pull the wire straight out.

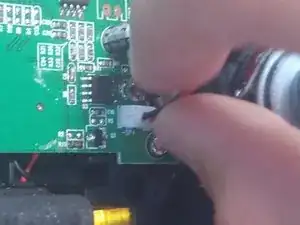

  6. 5OG3fQYXpAlll3kH

    • Connect the white plug of the new speaker to the motherboard.

Conclusione

To reassemble your device, follow these instructions in reverse order.
