Bosch PMF 180 E power cord / plug replacement

Scritto Da: Sandro Torchella
  • Commenti: 1
Bosch PMF 180 E power cord / plug replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

15 - 30 minuti

Introduzione

Your plug is damaged on your Bosch PMF 180 E? With this guide, you can exchange it!

  1. M3DFATXFMfxiIAbA
    M3DFATXFMfxiIAbA
    15tA1LMnMRJOtwWo

    • Absolutely disconnect the device as the first of the power (;-). Safety first!

    • If necessary, just a little bit of external cleaning so that when opening no additional dirt into the housing interior. for example with the fine brush but it is also an old toothbrush or a bristle brush, etc.

    • Very useful: An exploded view with spare part designation at the end of the description.

  2. c1aNfAI2H3A3Nhxw

    • Loosen 9 screws (combination screw T20 / slot # 5)

    • Tool: T20 / TR20 which u.a. included here. Or with a flat-head screwdriver # 5. I recommend a T20 / TR20 because it handles better without damaging the screws.

  3. E65YZrvrODHsALRL
    E65YZrvrODHsALRL
    do1xv3rwC1wAOS2s

    • With a flat object, the housing can now be easily opened along the seam. For example, with Jimmy, which is shown here. It also works with a flat knife or a thin Japan spatula.

    • If the unit is heavily used / dirty, simply pry slightly at several points along the seam until the case opens without force.

  4. idXreX5kyte3mPmb
    idXreX5kyte3mPmb
    vyngHRkpkC3hcWh1
    bEbFoFN2bIweeyyv

    • The housing is now open and further steps can be taken.

    • If necessary can now be cleaned. (in this picture you can see that it is obviously necessary)

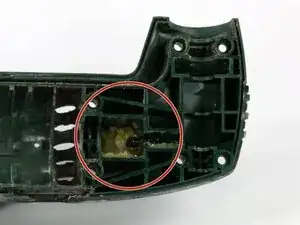

    • Do not remove the grease! The drive needs that. Of course, it can also be replaced by a new one.

  5. CCjjgvTWSkF5XmPG
    CCjjgvTWSkF5XmPG
    HX2HsBpw2FmQ6JGT

    • Now first loosen the two slotted screws # 3 so that the wires can be pulled out of the clamp.

  6. lg1GuwH3Fu3TH5pG
    lg1GuwH3Fu3TH5pG
    BQQUHjLLwQuW2KKL

    • Pull the wires out of the holder with a gripping tool. For example, with a pair of tweezers or a small, flat pair of pliers.

  7. AQsYYiw4EeZnqyAA
    AQsYYiw4EeZnqyAA
    PBVNTFYc6e1c3TKJ
    4PKEIRukERWOSdBq

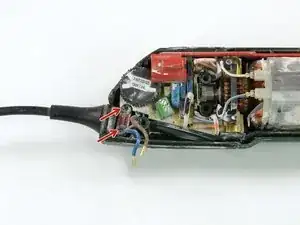

    • Now loosen the two screws (T20 / slot # 5) of the cable lock and remove the clamp.

    • The cable can now be pulled out of the grommet and replaced

Conclusione

Repeat the steps in order to reassemble your device.
