Bosch Pro Animal BSGL5ZOO2 Teardown

Scritto Da: hainzy
  • Commenti: 2
Bosch Pro Animal BSGL5ZOO2 Teardown

Difficoltà

Easy

Passi

6

Tempo Necessario

10 minuti

Introduzione

Here I show you how you can teardown your Bosch vacuum cleaner. The exact Model: BSGL5ZOO2/10

  1. TfvrCKAGCAb3NQQw
    TfvrCKAGCAb3NQQw
    5Vl5ZXLoiuADYhg1

    • Disconnect the power plug from the mains.

    • Remove the hose by pressing the two catches on the sides.

  2. bELA3KIBcSZe6syK
    bELA3KIBcSZe6syK
    CR6aAyVPhlPVBxZG
    HhQZhrny1EQyjBgW

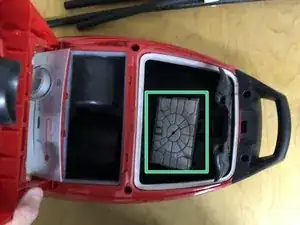

    • Remove residue bag G8.

    • Remove HEPA high efficiency hygiene filter 579496 VZ154HFB

    • Remove motor protection filter 578863 VZ01MSF

  3. caZx4rdxGmQlK1GI
    caZx4rdxGmQlK1GI
    SVwKq3k5bRdjiLAr

    • Use the spudger to lever the start button upwards from the front and remove it.

  4. K2QOD4poOY3PLpKO
    K2QOD4poOY3PLpKO
    Bxkw2By2JyCp4nxn

    • Loosen the 6 screws with the screwdriver.

    • Remove front grip.

  5. OqEhF2wslkdXP6KX
    OqEhF2wslkdXP6KX
    lKjFoKirT2RRW3jU

    • Lift the top of the housing from the handle side

    • Remove the top of the housing towards the rear.

  6. jpSROv4qX1EfM4r6
    jpSROv4qX1EfM4r6
    stBfCfEHMqDcvYYT
    NcRFBokAmv4CiTQe

    • Remove motor cover towards the back.

    • Carefully remove the circuit board from the guides of the cable drum.

    • The motor is now accessible.

Conclusione

Repeat the steps in reverse order to reassemble your device.
