Canon EOS Rebel G Flash Replacement

Using a #00 Phillips screw driver, remove three 4.4 mm Phillips screws as indicated by the red circles.

Using your finger, peel back the textured grip so the components are separated.

Using the flat end of a spudger, loosen the connection between the front panel and the device.

Remove the front panel using your hands.

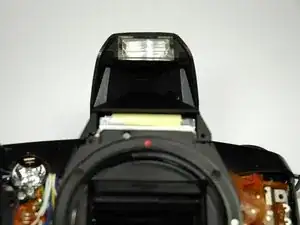

Pop the flash up with your thumb

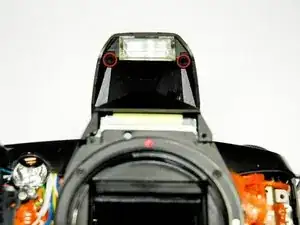

Unscrew the two screws on the front of the flash near the bulb cover.

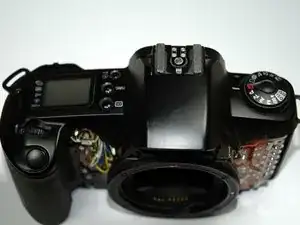

Close the flash.

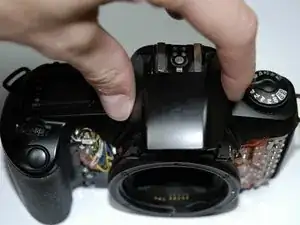

Lift the flash cover off.

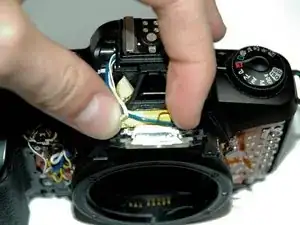

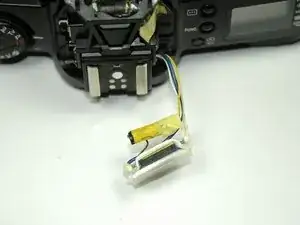

Pull off yellow capacitor from flash wiring.

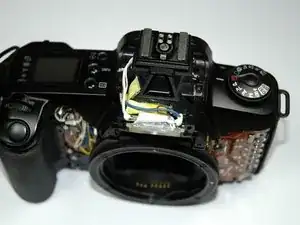

Remove white cocking with a razor blade, and then unsolder connection.

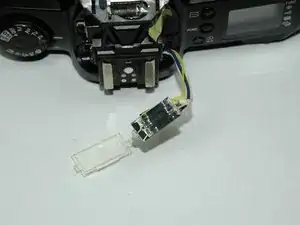

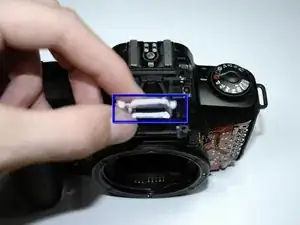

Remove the flash cover to access the flash bulb.

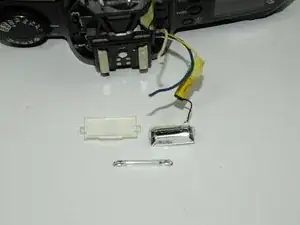

After wires are unsoldered, slide flash bulb out from housing.
