Canon EOS Rebel G Lens Connector Replacement

Using a #00 Phillips screw driver, remove three 4.4 mm Phillips screws as indicated by the red circles.

Using your finger, peel back the textured grip so the components are separated.

Using the flat end of a spudger, loosen the connection between the front panel and the device.

Remove the front panel using your hands.

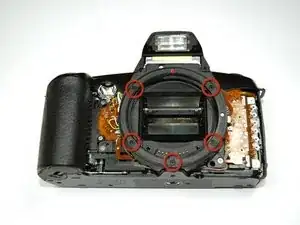

Using a Phillips #00 screwdriver, remove the 5 indicated screws

Five 6.2 mm Phillips screws

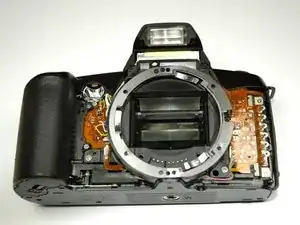

Using your hands, remove the top black ring.

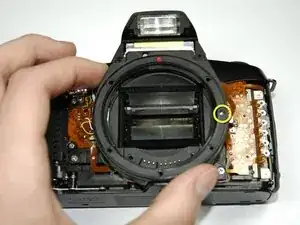

Spring located here.

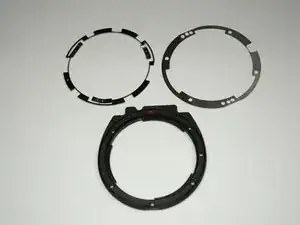

There are two silver metal rings.

Remove the top silver metal ring.

Remove the bottom silver ring.
