Canon EOS Rebel G Strap Anchors Replacement

Using a #00 Phillips screw driver, remove three 4.4 mm Phillips screws as indicated by the red circles.

Using your finger, peel back the textured grip so the components are separated.

Using the flat end of a spudger, loosen the connection between the front panel and the device.

Remove the front panel using your hands.

Turn Camera over.

Using a #00 Phillips screw driver, unscrew the two 4.9 mm Phillips screws located on either side of the viewfinder.

Using a #00 Phillips screw driver, unscrew the one 5.7 mm Phillips screw located next to the LCD screen.

Lay the camera on its back.

Unsolder the flash connection from the motherboard as noted by the blue circle.

Remove the top panel by lifting it from the back, pushing it forward over the camera and letting it rotate down in front of the camera.

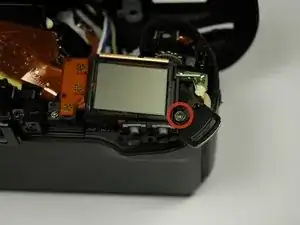

Unscrew the 6.8 Phillips screw that holds the strap anchor by the LCD.

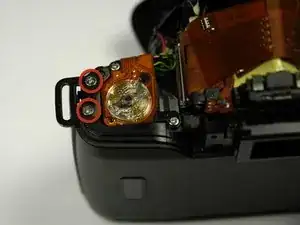

Unscrew the screws that hold the remaining strap anchor.

Two 4.9 mm Phillips screws
