Canon EOS Rebel T3i Screen Replacement

Scritto Da: Natalie Crock
  • Commenti: 3
Canon EOS Rebel T3i Screen Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

20 minuti

Introduzione

Use this guide to replace the LCD screen on your Canon EOS Rebel T3i.

  1. bAm42cfRNog1r5Tr

    • Locate the battery compartment on the bottom of the camera.

  2. 5chA6egdVXQVinPU

    • Hook your finger onto the compartment door latch.

    • Open the battery compartment door.

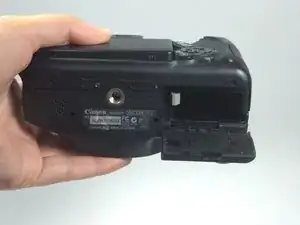

  3. wpYnkD2unGaDqVKU

    • Remove the battery from the compartment.

  4. S6GdIZPJJMh4l53k
    S6GdIZPJJMh4l53k
    CxlxWMDCrisxVyNO

    • Remove the two 3 mm Phillips #000 screws. The screws are on opposite sides of the screen.

    In addition to the 2 screws you pointed out, there are an additional 2 screws on the swivel side where it attaches to the camera. Without those 2 removed you cannot take the back off.

    gtinmia -

  5. LXx6JPZoZUxORlYc

    • Remove the plastic backing.

  6. KYrTutOvMuwcl3n2

    • Unplug the blue cable from the back of the LCD.

    Hi, I have a Canon T3i and this blue cable is broken. Where can I find this cable to buy?

    Does it have any reference number?

    JOAO L C CARVALHO -

  7. cvERknyo3GPZbbjl
    cvERknyo3GPZbbjl
    UxEicPSAOUvtj1og

    • Remove the two 3 mm Phillips #000 screws.

    • Separate the LCD from the plastic housing.

    There are an additional 2 screws that need to be removed from the swivel part which keeps the LCD in place. Those 2 screws are only visible after you remove the backing. In total, there are 8 screws to remove to be able to take the LCD out. 4 to get the backing off, 4 to get the LCD detached from the housing.

    gtinmia -

Conclusione

To reassemble your device, follow these instructions in reverse order.
