Canon EOS Rebel T4i Motherboard Replacement

Scritto Da: Jordan Rabold
  • Commenti: 12
Canon EOS Rebel T4i Motherboard Replacement

Difficoltà

Moderate

Passi

14

Tempo Necessario

15 - 20 minuti

Introduzione

This guide will detail the process of replacing the motherboard. Replacing the motherboard is a more involved process and should not be done unless your are sure there is an issue with the motherboard.

  1. W3S3ZXWL4hrkCsNr

    • Locate the battery cover at the bottom of the camera.

    • Pull down on the black tab to open the cover.

  2. h4eicfKdNYOZACkT

    • Push the grey tab on the right side of the battery.

    • Remove the battery from the slot.

  3. UFk1lUVuV3Lgn3mT
    UFk1lUVuV3Lgn3mT
    ZtkY5Px1i2yDG3jC

    • Use the spudger to pry off the rubber grip and reveal the screws.

    • Unscrew the four 5.5mm Torx screws using the Torx T6 screwdriver.

  4. 5Fvbc5HZpmOAvnBy
    5Fvbc5HZpmOAvnBy
    d1WARhdsp4FyMSn4
    EjOmht5XGSsOeNtd

    • Pull off the plastic cover from the viewfinder.

    • Unscrew the two 3.4mm Phillips screws using the Phillips #00 screwdriver.

  5. 6tlgtivAH5iOlFbT

    • Remove the following screws from the device using the Phillips #00 screwdriver:

    • Two 3.4mm Phillips head screws.

    • Two 5.9mm Phillips head screw.

    On my camera, both the outer screews were 5.9 mm long.

    Geir Atle Storhaug -

    I can confirm the comment from 03/14/2015: Both outer screews are long.

    Erikk -

  6. Ofg2Hk6TmGcDOjnB

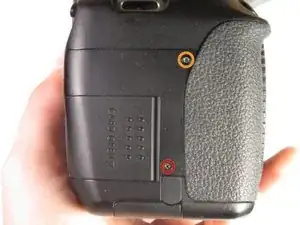

    • Remove the following screws from the device using the Phillips #00 screwdriver:

    • One 3.4mm Phillips head screw.

    • One 5.9 mm Phillips head screw.

  7. YhcTaDldIMSE32UP

    • Remove the rear panel from the camera.

    • Several fragile cables are attached to the inside of the panel, so remove it gently.

  8. DZMNeSCJ3eOeXjZ2
    DZMNeSCJ3eOeXjZ2
    1ovsgVLbgDLPTgBg
    apoOhG5vyCbGdxva

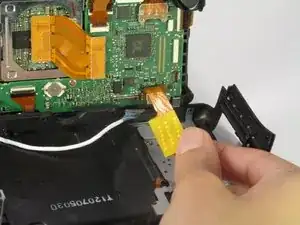

    • In the lower right corner of the mother board, detach the blue cable.

    • Then detach the ribbon cable going from the motherboard to the rear panel.

  9. f3EticRaShjxUdJI

    • In the upper left corner of the motherboard, remove the small multicolored wire from the motherboard.

  10. KP5GeIXMFvSAQcOO
    KP5GeIXMFvSAQcOO
    o44OJWSvCVU5KRKy
    Y1aCxdOu31Asd6yV

    • Use the plastic opening tool to flip up ribbon cable connector.

    • Gently disconnect the ribbon cable by pulling it away from the motherboard.

  11. TCOc6EKCGFgrhe1Y
    TCOc6EKCGFgrhe1Y
    IGpOWJ55xda2gfKv

    • In the upper right corner of the motherboard, use the plastic opening tool to remove the clear cable connector from the motherboard.

  12. qMuOfuaD2jg51A4y
    qMuOfuaD2jg51A4y
    54GhOSir1GTaVcmP

    • Use the plastic opening tool to remove the ribbon cable connecting the image sensor to the motherboard.

  13. NVINKa5sXsXVY3RO
    NVINKa5sXsXVY3RO
    5gNpaJO3wOPlw5w6

    • Use the plastic opening tool to push on the indents of the plastic header to disconnect from the motherboard.

    • Make sure all cables are disconnected from the motherboard.

  14. yrYD1XxUAeOWMDEG
    yrYD1XxUAeOWMDEG
    vCUnlBRH6uYVOsWA

    • Remove the following screws from the motherboard using the Phillips #00 screwdriver:

    • Two 3.9mm Phillips head screws.

    • Three 2.9mm Phillips head screws

    • Gently pull the motherboard out of the camera.

    I was wondering how did you get to loosen the 3.9mm Phillips screw on the top right.

    lucato -

    Fixed that, the orange marker was a bit off, it was on an alignment pin instead of the actual screw which was just a bit more to the right.

    Flying Dutchman -

    I cannot reach the 3.9mm screw with any tool because it is underneath of the plastic body that holds the zoom +/- buttons. How old you remove that top right motherboard screw?

    Jeff Ramsey -

    I hate to bring up an old question, but did you ever manage to get this screw off with your camera? I am working on mine yet I am about to simply drill through the plastic under the zoom buttons.

    jeremy cohan -

    You have to remove the top part of the camera body to reach the screw. It is also much easier to reconnect flat cables.

    Max -

    Where can I find a replacement board. I cannot find one anywhere!

    Matt Jones -

    Same here, how to remove this top-right orange 3.9mm phillips screw?

    If top has to be removed, how to do that? It’s not visually obvious to me at the moment.

    Also, really where to get the replacement MB?

    Giorgi -

    That last top-right screw is actually impossible to remove - need to take off the top cover. Follow this guide:

    Canon EOS Rebel T3i Top Casing Replacement

    Giorgi -

Conclusione

To reassemble your device, follow these instructions in reverse order.
