Canon EOS Rebel T5 SD Card Reader Replacement

Difficoltà

Very difficult

Passi

23

Tempo Necessario

45 minuti - 1 ora

Introduzione

If your camera is no longer reading SD cards, you may find that you need to replace your card reader. This guide will show you the steps necessary.

  1. JZpuhYn5aNx2a5k5

    • Lay the camera on its back so that the card/battery door is facing you.

    • Using your fingernail, slide the tab on the battery door up to release the battery door latch.

  2. ImYNPluw4SOitEDE

    • Lift the now free card/battery door to reveal the battery compartment.

    • Push the gray lever to the right side so that the battery can be removed and replaced with a new one.

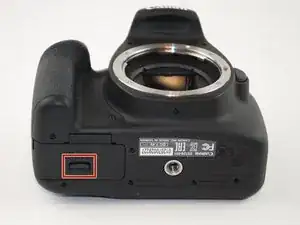

  3. ELj2wCKA6UFw2nXe

    • Lay the camera on its back so that the card/battery door is facing you.

    • Using your fingernail, slide the tab on the battery door up to release the battery door latch.

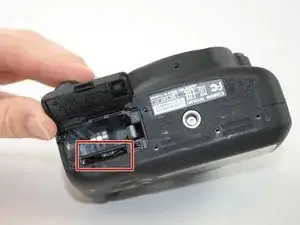

  4. tZ2XMUQTSc6NKtcR

    • Open the battery compartment by lifting the card/battery door. You will see a thin SD Card slot below the battery.

    • Push in the old SD card until it clicks to remove it and then push in the new card until it clicks into place.

  5. pL6vROgghEGJB2p2

    • Turn the camera so that the back is facing to your right.

    • Remove the 5mm Phillips #000 screw above the rubber USB port cover.

    2 more screws behind rubber cover.

    Michael Gill -

  6. QCLgfQBmWFJQQwmh

    • Remove the rubber piece.

    • Unscrew the two screws under the rubber cover to completely remove the rubber cover piece.

    • It is held in place by a notched tether, but can be easily manipulated to slide out.

  7. rInTocWZnrQMjULP

    • Turn your camera so that the bottom is facing you.

    • Remove the 5mm Phillips #000 screws.

    There is a 6th screw next to the battery door.

    Michael Gill -

  8. ISEoqXlHElNZTyxX

    • Now turn the camera so that the front is facing towards your right.

    • Remove the two remaining 5mm Phillips #000 screws.

    Instructions are forgetting the two screws on either side of the viewfinder…. Viewfinder slides up to reveal two screws.

    Hugh Morand -

  9. MsAeFqtNGjb34bSj
    MsAeFqtNGjb34bSj
    f64UqWVwpAtPgpEo
    A33ZdIWoKkStvY3V

    • Now that all of the exterior screws have been removed, grip the camera firmly on both sides.

    • Gently pry the back panel from the main body of the camera.

    • There are two ribbon cables that need to be removed in order for the back panel to come free from the camera body, as indicated.

    • This back panel contains various control components of the camera as well as the LCD screen.

    Do NOT pry until you’ve removed the eye gasket, and the 2 screws behind this! You will break the camera.

    Michael Gill -

  10. A3slMXZGSjJNvfgS
    A3slMXZGSjJNvfgS
    PxEt3OLOxKq6Gupv

    • Remove the four silver 4mm Phillips #000 screws connecting the LCD screen to the back of the camera.

    • Be sure to lift the ribbon cable to remove the remaining hidden black 4mm Phillips #000 screw.

    The circled screw on the bottom in the middle isn’t a screw, it’s an alignment nub. The 4th screw is behind the black flex.

    Michael Gill -

  11. WLsco3XbxpRXRBMU

    • The LCD screen can now be lifted from the right side to be replaced.

    New LCD pressure fits into metal carrier tray. Assemble back together upside down, or LCD will fall out of tray.

    Michael Gill -

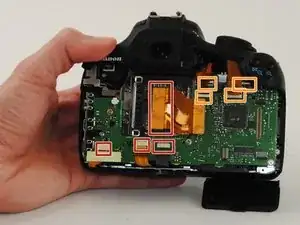

  12. E3xJNDcNIWcW65NV

    • Remove all ribbon cables with the plastic spudger.

    • Gently pry up the black plastic tabs to slide out the ribbon cables

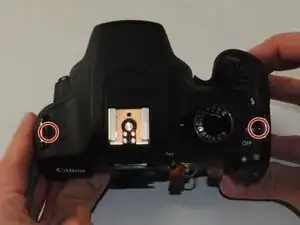

  13. bwY4L1ruPBK2m1jF

    • Turn your camera so that the top is facing you.

    • Remove the two black 5 mm Phillips #000 screws.

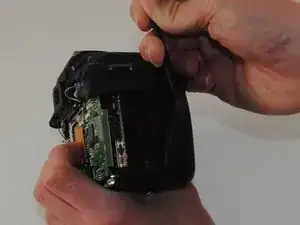

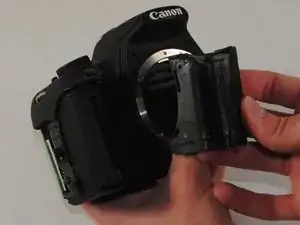

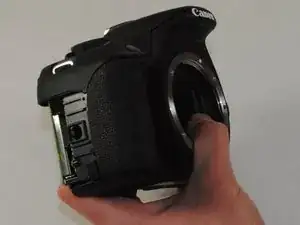

  14. iR5eTXmhxmFrsCxF
    iR5eTXmhxmFrsCxF
    HsM1vLY1VtQOefip
    RPe5ZDjWMFc1qgpo

    • Turn the grip side toward you.

    • Remove the rubber grip, using the plastic spudger.

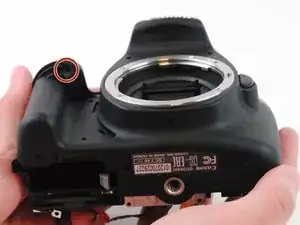

  15. c4cl6nOrrMoj12Xm

    • Remove the black 5 mm Phillips #000 screw, located under the grip.

    they is a cable i think gray in color on the top panel, where does it fit, it seems to come out easily

    Tshepiso Marques Molefe -

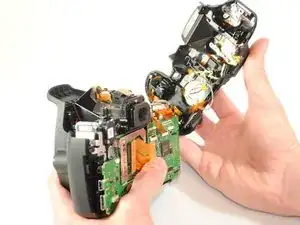

  16. jlDlMIYOoKcKYTnC

    • Remove the top panel of the device.

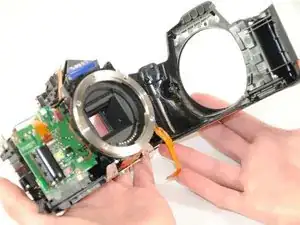

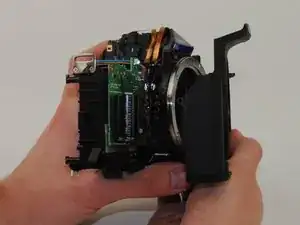

  17. ugfNSgnwDxFjmyi2
    ugfNSgnwDxFjmyi2
    gNem1Hd3xWCXO2xM

    • Remove the front panel of the camera.

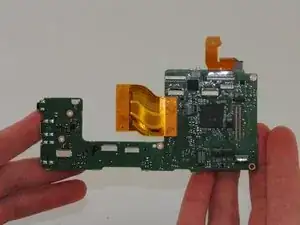

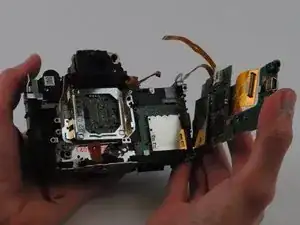

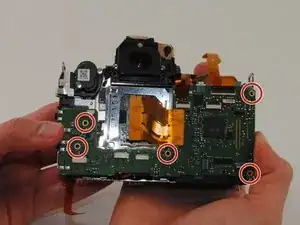

  18. boa6RZLDuDIAb2FR
    boa6RZLDuDIAb2FR
    cN3PYQ6qSyovMSAv
    OFWsUITrSB6laMmi

    • Remove the five silver 5mm Phillips #000 screws.

    • The motherboard can now be removed.

    Where can I buy a Motherboard for a T7 and what would the cost be?

    Dean Smith -

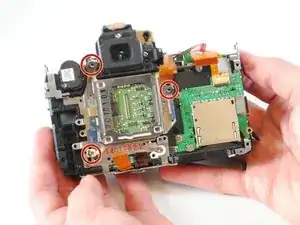

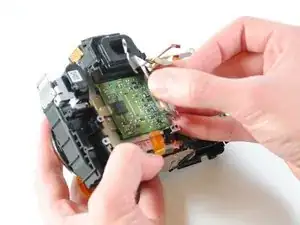

  19. 6Di2ImjPDPBWwPBf
    6Di2ImjPDPBWwPBf
    CLZFUdwRMWdVO4xf

    • Remove the three silver 3mm Philips #000 screws from the image sensor holder.

    • Remove the image sensor holder.

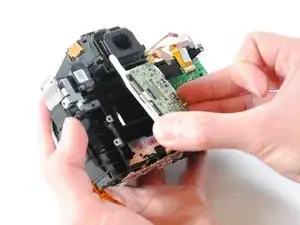

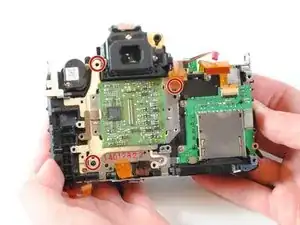

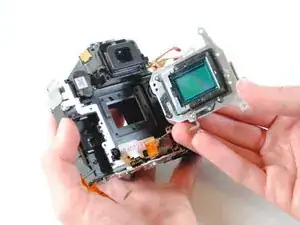

  20. 4RAoefhLfvVLFiGR
    4RAoefhLfvVLFiGR
    pZVoL23nBuks6IqL
    aUtKWJP1o3srXnUx

    • Remove the three remaining silver 3mm Philips #000 screws from the image sensor.

    • Be careful not lose the springs underneath the screws on the image sensor

    • Using your fingers, lift the image sensor from the device.

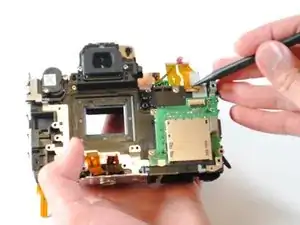

  21. EQ35YaqYETgVYIqY

    • Using the plastic spuger, disconnect the wire strips that are attached to the SD card reader.

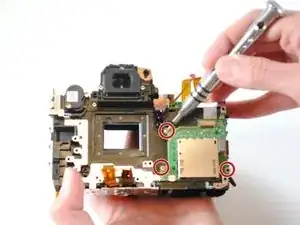

  22. RqXLURXhL3kjFRgK

    • Remove the three 3nm Phillips #000 screws connecting the SD card reader to the back of the device.

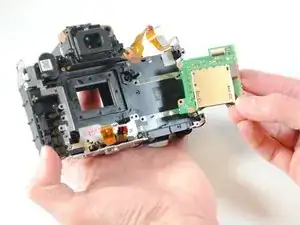

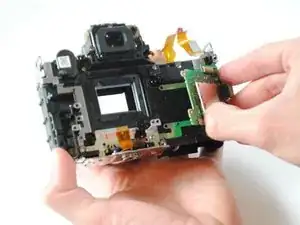

  23. NQSNxNHokkDuxw2T
    NQSNxNHokkDuxw2T
    E4iaAQW1a5FonUdG

    • Using your fingers, remove the SD card reader from the back of the device.

    this way sucks an better way to do this is just remove the screen side then remove the top board and then unscrew the card slot board and replace it.

    simple

    muslimcomputers -

    Muslimcomputers- can you show me the easier method you've explained here please?

    I'd very much appreciate it.

    Martin Mcfarland -

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Tyler Brown

Membro da: 22/09/14

846 Reputazione

5 commenti

Very comprehensive tutorial but 2 screws forgotten (on both sides of the viewfinder) and the adjustment thumb knob withdrawal before removing the top panel of the device. Good job anyway, tks

igloo -

Is there a video of this?

Hubzilla -

Removal of the sensor is NOT required to take the SD board out of the camera. The sensor needs to be fitted back to exactly the same height, otherwise you WILL not retain autofocus. Why was there no mention of this during the steps above?

Lee Gartside -

Bonjour , ou peut on acheter le lecteur de carte sd , merci , cordialement

d007 Éric d007 -

Step 19 and 20 are only for modifiing or replacing the image sensor

And is not recommended because AF doesn't work without further adjustment

Tom Oos Oss -
