Canon EOS Rebel XSi Back Panel Replacement

Difficoltà

Moderate

Passi

8

Tempo Necessario

10 minuti

Introduzione

This replacement guide shows how to remove this device's back panel. This step is necessary to replace many internal components of the camera.

  1. 4FItVIUMUfa1GeW3

    • Squeeze the eyepiece between your index finger and thumb and lift up and off.

  2. xcJH6OSgboijlF3t

    • Using the PH000 screwdriver head, remove the four 4 mm screws on the bottom of the camera.

  3. APuW1SXcucXODQE4

    • Using the PH000 screwdriver head, remove the two 3mm screws on the right side of the camera (from the LCD screen).

  4. xdZ4cpsgib1tFIdU

    • Remove grip by slowly peeling off.

  5. ESGUDQnlSAGgh2jj

    • Using the PH000 screwdriver, remove the four 4mm screws behind the eyepiece.

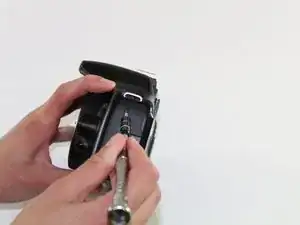

  6. GdJdKa1nhobtcSPu

    • Using the PH000 screwdriver head, remove one 4 mm screw on the left side of the camera (from the LCD screen).

  7. H2cPu1hEXYnGpXyv

    • Remove the side panel by lifting off with fingers.

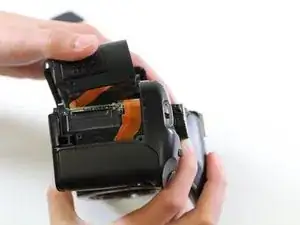

  8. l1ETeDISttLCYXq4

    • Use hands to pry off the back panel.

Conclusione

To reassemble your device, follow these instructions in reverse order.
