Canon PowerShot SD400 LCD Replacement

Scritto Da: Yi Huang Ke
  • Commenti: 2
Canon PowerShot SD400 LCD Replacement

Difficoltà

Moderate

Passi

4

Tempo Necessario

Nessuna stima

Introduzione

This guide will provide you with step-by-step instructions on how to replace a faulty LCD screen for a Canon PowerShot SD400. The LCD, or liquid crystal display, is a flat monitor that displays images. The LCD may need to be replaced if it has cracks, discolored pixels, spots, blobs, flickering, or if there's no image signal. Before you begin, ensure that the camera is powered off.

  1. 3rIDxXU3ALDNIHJi
    3rIDxXU3ALDNIHJi
    QgwEXvgmTCyQsVGr
    KBcPsvAWg5hCLAcr

    • Locate the 6 screws that you must remove to open the camera housing.

    • There are 2 screws on the bottom and 2 screws on each side

  2. stKovRTPJQZKL6MA
    stKovRTPJQZKL6MA
    HLqpvLQyOuua3ugC
    cHvWoZlhVuFmQ4Tk

    • Using the screwdriver, carefully remove the exterior screws and set them aside to avoid misplacing them.

  3. coOeDAttd64I1GOl
    coOeDAttd64I1GOl
    vUUnUpigr2GoOktq

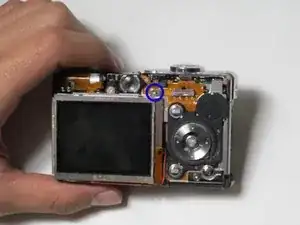

    • Locate the interior screw to the top right of the screen.

    • Remove the screw using the screwdriver.

  4. k2bEvWxRUyVvLdqo
    k2bEvWxRUyVvLdqo
    MSYfPxEsIW6RHSuD
    K6q2tKJPw6QR2JMT

    • Insert the flat-head screwdriver under the LCD screen into the two clips.

    • Lift the LCD screen.

    • Potential for device damage Lift the screen gently and be careful not to rip the screen off.

    Then what what to do next

    Keeneh Weah Cisco -

Conclusione

To reassemble your device, follow these instructions in reverse order.
