Casio Exilim EX-Z850 Outer Case Replacement

Difficoltà

Easy

Passi

3

Tempo Necessario

5 - 10 minuti

Introduzione

This guide shows you how to open the Casio Exilim EX-Z850's outer casing and access the camera's internal components. This may be necessary to replace parts of your camera.

  1. WF1dLZqTrYvUAIlh
    WF1dLZqTrYvUAIlh
    1EFbWQZSJ3sKjKMl
    TbyQgVhYbT22tnUN

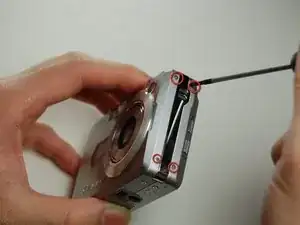

    • Remove all four screws on the camera's side using a Phillips #00 screwdriver.

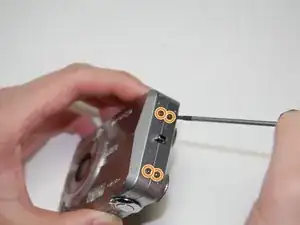

    • Remove all four screws on the opposite side of the camera using the same screwdriver.

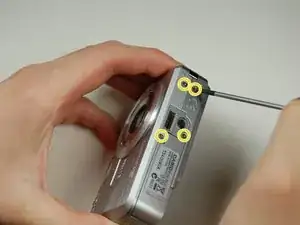

    • Remove all four screws on the bottom of the camera using the same screwdriver.

    • The bottom screws are longer than the top screws, so label them accordingly for easy reassembly.

  2. 1dXDyWOTYmoepy1H
    1dXDyWOTYmoepy1H
    TcSyN5LK2PruJDNJ
    TWscWtoXjlnV1VXW

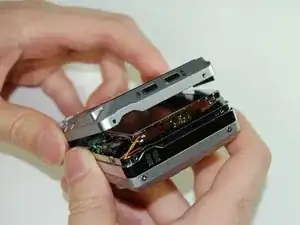

    • Pry open the bottom casing.

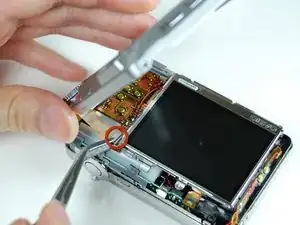

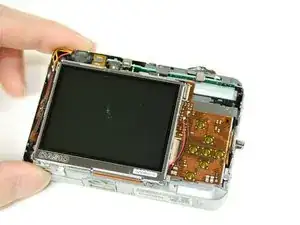

    • Remove the ribbon from the LCD screen using the tweezers and set aside the bottom casing.

    • These steps should be taken carefully in order to prevent damage to the camera.

  3. ObJA5NTKTN4VNask
    ObJA5NTKTN4VNask
    gDuDTGpsGZN5blHp

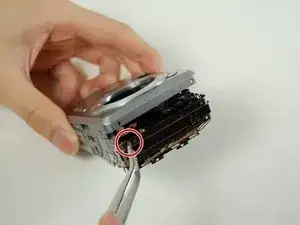

    • Pry apart the top casing using tweezers.

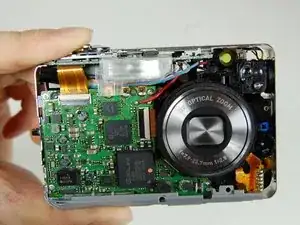

    • Remove the top casing from the camera and set aside the top casing.

    • These steps should be taken carefully in order to prevent damage to the camera.

Conclusione

To reassemble your device, follow these instructions in reverse order, starting with reattaching the top casing.
