Motorola Moto 360 3rd Gen Battery Replacement

Scritto Da: Simon Potel-Bouchard
  • Commenti: 8
Motorola Moto 360 3rd Gen Battery Replacement

Difficoltà

Easy

Passi

10

Tempo Necessario

5 minuti

Introduzione

This is a tutorial on how to change the Motorola moto 360 3rd gen’s battery.

  1. OOjQ2UBcGVsfeKcv
    OOjQ2UBcGVsfeKcv
    EQ2QSpvXAmdnVXKY

    • Unscrew the 4 bolts with your T4 screwdriver.

    • If the cover is stuck, gently pry open with a spudger.

    • Do not remove the cover completely, it could damage the watch.

  2. aPESMaJirgD5HYDE
    aPESMaJirgD5HYDE
    WkdOoQkLKnwOayGw
    HbTRgPRKpHexdIcn

    • Gently raise the cover.

    • Disconnect the cable with your spudger.

  3. ECKqqjqPXDIbvU2v
    ECKqqjqPXDIbvU2v
    PXpr12fqbFXHFcaN
    3qVaYKDy5CDbCZTk

    • Gently disconnect the ribbons with your spudger.

    • Do not remove the bottom-left cable.

  4. AVvpoidHZi6blfYC
    AVvpoidHZi6blfYC
    lWleKukvDANdlA5j
    oyOuGYGjVaU6iIsk

    • Gently remove the motherboard.

    • Place your spudger under the board and lever up.

  5. UKZooSiOjgBHgWMT
    UKZooSiOjgBHgWMT
    T1sqV4bCg6FhunQO
    FxW1FmUUyIEa2hr5

    • Turn the motherboard around so that you see the battery. The battery connection needs to be at the bottom.

    • Gently pry the battery. The easiest way to do so is in the top-left corner.

  6. DTrQVwYpYMlLAaQP

    • Put the battery back into its case.

  7. ydHB2VHeOkP1NRUB
    ydHB2VHeOkP1NRUB
    vSpotTsGlOBBBHJl
    pscxO4RhgNZa3KEk

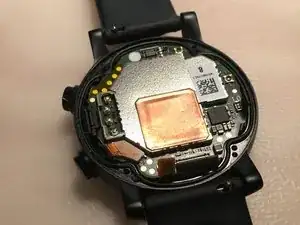

    • Gently put back the motherboard in the watch casing.

    • Start by putting the left side first.

    • Be careful not to pinch any cables.

  8. qErYnDRHvyQfsAZa
    qErYnDRHvyQfsAZa
    SOFWebCGNHJWkM3C
    PTDZChVkIkkglII5

    • Reconnect all the cables.

    • Note: You can use your spudger but a finger does it.

  9. pkWDaWEU1hMPEmSD
    pkWDaWEU1hMPEmSD
    xmDPftVOx2Jm3Oyk

    • Reconnect the cable attached to the back panel.

  10. rdKvDq4THK1rAx2X
    rdKvDq4THK1rAx2X
    2tFxUFxO3ESbFonO

    • Screw the four screws and you’re done!

Conclusione

Hope you enjoyed!

Autore

Simon Potel-Bouchard

Membro da: 01/03/22

284 Reputazione

8 commenti

Where did you get the replacement battery? Model APP00306

txwalk -

I didn’t get another one. For this guide I just used the one that came with the watch, to show people how it works. I saw people saying that your best bet would be to look on eBay or Amazon.

Simon Potel-Bouchard -

Thank's for manual. Do you know what tipe of battery 🔋 in moto 360-3?. Do you get a photo?

SHEVDEN -

app00306 1icp5/24/28 но ты не сможешь её купить. её не продают. если найдёшь где купить напиши сюда пожалуйста.

На eBay или Amazon нет такого аккумулятора.

Don Lion -

Can I use the same battery as the 1st gen? Can you send me a link for the battery on ebay please?

Eytan Benittah -

I too am searching for battery for 3rd gen.... Pretty sure mines dead due to battery, and hoping to get one more battery life cycle out of this little guy! haha.

MassStash -

The battery linked to in the article is incorrect and for a 1st generation watch. If you search for "APP00277" it looks like it MIGHT be the right one. It at least looks like the original and has a ribbon connector instead of wires. The number is 1ICP4/24/28 instead 1ICP5 though. The pictures here don't show the all important style of connector at the end of the ribbon so it's a complete gamble on that without someone else taking their battery out to look at it. I may have to myself I guess.

Ben Hammon -

OK. Took mine out and compared to the helpful eBay listing BIG photo. The 277 appears to have a shorter cable, offset to one side where the 300 is more centered, and the actual connector looks different enough I'm not up for chancing it. On that one anyway. Search continues...

Ben Hammon -
