why! N131WU RAM Replacement

Remove the case screws (red) and the keyboard screws (green).

Using the hole provided under the case (see picture), push the keyboard out using a thin screwdriver or some other solid object.

Hold onto the keyboard as you push the keyboard so as not to damage the two cables still attached.

(Blue Cable) Push up on the thin black portion on the connector and gently pull out the blue ribbon cable until it comes out.

(Orange Cable) Remove the orange cable by sliding the gray part of the connector towards the screen, then gently pull on the ribbon cable.

Unscrew the three screws that were under the keyboard. Be sure to hold onto these.

After these are removed, you can now remove the lower part of the case from the rest of the computer.

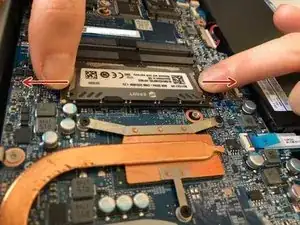

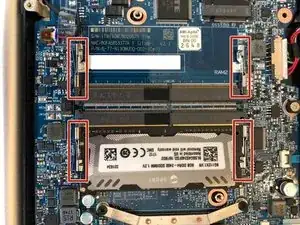

Gently pull outwards on the clips to free the RAM stick.

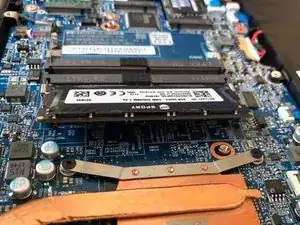

Remove the RAM Stick from its slot.
