Chromebook x360 14-da0011dx Fan Replacement

Scritto Da: Jake Williamson
  • Commenti: 0
Chromebook x360 14-da0011dx Fan Replacement

Difficoltà

Moderate

Passi

8

Tempo Necessario

20 - 25 minuti

Introduzione

This guide will walk users through replacing the cooling fan of the Chromebook x360 14-da0011dx. Fans accumulate debris and dust over time, causing malfunction or reduced function. If possible, clean fan debris and retry connection before replacing the fan altogether.

  1. xgaiSYuyOGuhDvgG

    • Flip the device over with the hinge facing away from you.

    • On the back of the device, remove the two rubber strips on the top and the bottom of the device using a spudger.

  2. WKlCqBMAIRWm6VY5
    WKlCqBMAIRWm6VY5
    kTQpM2fTLC6leu5W

    • Remove the seven 8.0 mm screws located under the two rubber pads and the screws along the back of the device using a Phillips #1 screwdriver.

  3. oOUhJS4EKqd3QJef
    oOUhJS4EKqd3QJef
    1MLaVKi1RgDksfrM
    fUpMSpMmaEpYapAS

    • Use a spudger to gently pry the edges of the back cover off the device. Slowly work all the way around the device until the panel comes loose.

  4. WKVA2eyirIubapUU
    WKVA2eyirIubapUU
    cYU4NdnZsiPHKuTF

    • Remove the cable attached to the battery.

  5. Ss1oQcyXgUjRLNsQ
    Ss1oQcyXgUjRLNsQ
    nJAmRoQnQBmHTnXP

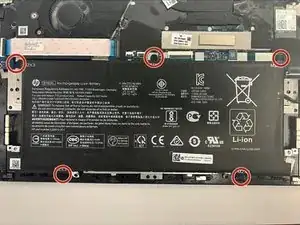

    • Remove the five 3.0 mm screws holding the battery in place using the Phillips #1 screwdriver.

  6. hIgx5dPja22VHKtZ

    • Lift the battery out of the chassis.

  7. 3yAeVsEfcgBhaXat

    • Remove the two 3.0 mm Phillips #1 screws holding the fan in place.

  8. PnBZ6jcORD14tZSh
    PnBZ6jcORD14tZSh
    AUGsA2JYgmeXLLrr

    • Disconnect the fan cable from the motherboard.

    • Carefully remove the fan from the computer.

    • Be careful when removing the fan, as it sits under one of the CPU heat pipes and tucks under the ribbon cable that runs to the I/O board.

Conclusione

To reassemble your device, follow these instructions in reverse order.
