Cobra SPX 5300 Audio Dial Replacement

Scritto Da: Samantha Delle
  • Commenti: 0
Cobra SPX 5300 Audio Dial Replacement

Difficoltà

Easy

Passi

6

Tempo Necessario

5 minuti

Introduzione

This guide will walk you through replacing the audio dial.

  1. XlwqXpZDjPunEatF
    XlwqXpZDjPunEatF
    eQDPk3gdqt2YITML

    • Remove the four 9.5 mm Phillips #0 screws from the back of the device.

  2. YVQZIquXSLEtGFAM
    YVQZIquXSLEtGFAM
    eJnDfLTqM3fTo1xE

    • Pull the black plastic back case off of the device.

  3. eDnd1jveGsFaLqJ1

    • Lift up the motherboard and lay it flat next to the device.

    • Be careful not to sever the wires. The buttonboard is connected to the motherboard by the wires.

  4. DAL6qIMhXESf2eBb

    • Remove the windshield bracket mount.

  5. Y21QXJTikrF1sMA3

    • Remove the one 4.8 mm Phillips #00 screw from the center of the audio dial.

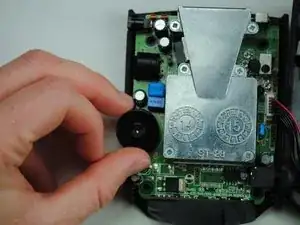

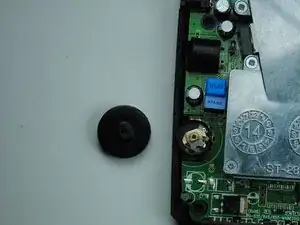

  6. DlAtKKbKBciLdNEW
    DlAtKKbKBciLdNEW
    BxIRlQOvrJLU2g52

    • Remove audio dial.

Conclusione

To reassemble your device, follow these instructions in reverse order.
