ComNet Ericsson Panther 600P Speaker Replacement

Scritto Da: Kellan Sells
  • Commenti: 0
ComNet Ericsson Panther 600P Speaker Replacement

Difficoltà

Easy

Passi

7

Tempo Necessario

5 - 10 minuti

Introduzione

Speakers will sometimes rupture from extended periods of high volume. Speakers may also malfunction due to old age. Without a speaker, many devices can not be used. This guide helps you replace the speakers for the ComNet Ericsson Panther 600P.

  1. hukvoDmosZklhTUx
    hukvoDmosZklhTUx
    Bubb2BUkNqvD2kjC
    fT4IN2SMwwZSdwEI

    • Look for the release button on the back of the radio.

    • Press the button and pull down on the battery at the same time. The battery will come free.

  2. uKPVIP6mGuVIKWAv

    • Twist the antenna counter-clockwise to unscrew it from the antenna jack.

  3. 3xcZAA1pIWGBurUu

    • Pull up on the dials to remove them from the underlying pegs.

  4. 2BOKuBBCP4YqJoci
    2BOKuBBCP4YqJoci
    xwyCbQ5ZAET6ka2y
    AQ5anyrcAmObSuEj

    • Using a T15 Torx screwdriver, unscrew the two screws.

    • Using a plastic opening tool, pry the internal case from the external case.

  5. hGlLVKMN1kLPdX3j
    hGlLVKMN1kLPdX3j

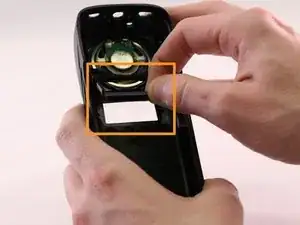

    EDZK3H5It2wooQ5A

    • Locate the device's speaker inside the front panel of the exterior case.

    • Locate the display and speaker stabilizer.

    • Lift the stabilizer up from the bottom and pull the stabilizer out of case.

  6. egVompDtNAyyUWGv

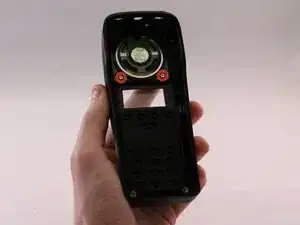

    egVompDtNAyyUWGv

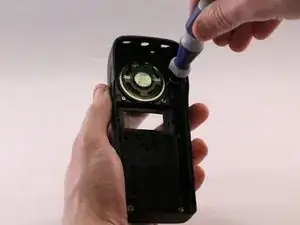

    xURKl6LRiMneDQMc

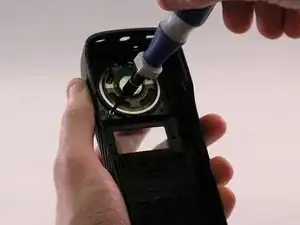

    4H3AsXJPsXYOWks1

    • Locate the two 3.75mm screws holding the speaker to the exterior case.

    • Using a T15 Torx screwdriver, unscrew the 3.75mm screws.

  7. ZWevIrveOPulnAEG

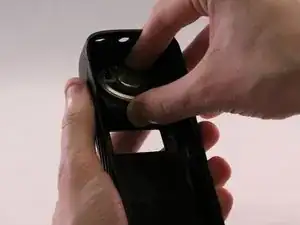

    ZWevIrveOPulnAEG

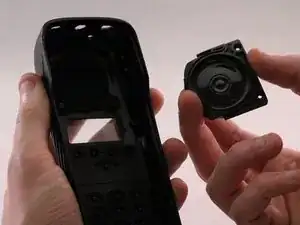

    qvcMi4x1kgQpSnQF

    • Lift up on the bottom of the speaker to detach the speaker.

    • Pull the speaker out of the case.

Conclusione

To reassemble your device, follow these instructions in reverse order.
