Come riparare il cavo di un alimentatore Apple

Scritto Da: Angela Penaherrera
  • Commenti: 94
Come riparare il cavo di un alimentatore Apple

Difficoltà

Difficile

Passi

15

Tempo Necessario

1 ora

Introduzione

Solitamente, il cavo inizia a staccarsi proprio nel punto in cui incontra l'alimentatore di rete . Ho visto troppe persone buttare i loro caricabatterie solo per questo. Ci vogliono tempo e pazienza ma si può aggiustare!

  1. 3wcDqrHcxwhiceaa

    • Brutto taglio.

    One option is to cut the protruding plastic. Just be careful not to cut the wires inside as these will be soldered to the cable. If this does not work, then you can proceed to opening the casing. I recommend this if you are hesitant to violate the integrity of your adapter.

    marcellus124 -

  2. D2JBPVk6ghlImtjn

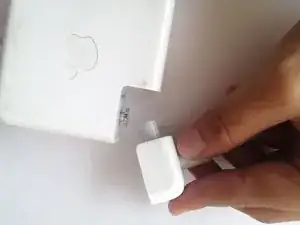

    • Scollega il cavo di alimentazione.

  3. hnLvLuaLCctWPtqK
    hnLvLuaLCctWPtqK

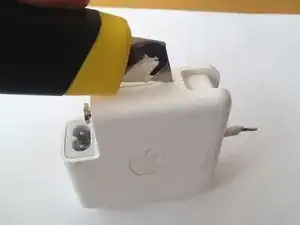

    SyiX2fMVNKIDfWkG
    ZI1SRhgJqASLdg1i

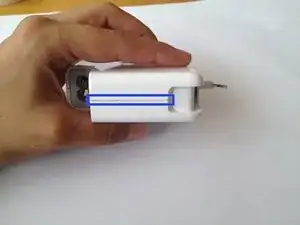

    • Guarda la linea che attraversa il caricabatterie. Questi pezzi sono incollati con una super colla che ti impedisce di smontarli.

    • Dovrai tagliare attraverso la plastica seguendo quel piccolo spazio con un taglierino.

    • Questa operazione richiederà un po' di tempo, dovrai tagliare la plastica in tutti e quattro i lati. Quando ne avrai tagliata la maggior parte, te ne accorgerai.

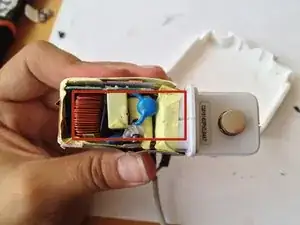

    • Fai attenzione al lato mostrato nell'ultima foto, ci sono un paio di componenti che potrebbero venire tagliati inel corso di questa procedura.

    Die Öffnung klappt relativ gut mit einer O-Ring Zange, ohne Aufschneiderei. Start bei den aufklappbaren Flügeln.

    Kay Ackermann -

    What worked reallly well for me was, instead of prying with a screw driver, I took some small pliers and put them right where the little tab flips up, where there’s vertical walls about a half inch apart, and I opened the pliers; do this on both sides a few times and you should be able to open the box without too much damage.

    Bradley Turek -

    +1 to these suggestions. for anyone having trouble visualizing: https://www.youtube.com/watch?v=Yqa9uUKu...

    will t -

    O-Ring Zange??

    hans -

    At first, it seems like a daunting situation, because the adhesive has the enclosure so firmly sealed. However, I went around the entire enclosure with a razor blade at about 1/8th inch depth. Then used a fine chisel bit as a wedge. Inserted it into the crack, rotating it torsionally occasionally, and edged it around the circumference. At some point there is a “CRACK”— but don’t panic, its just the final bits of the adhesive releasing from the enclosure.

    skat1140 -

  4. 4tfUOoW4BZHZq3jx
    4tfUOoW4BZHZq3jx
    q1EdUSD1DnV6KBDJ

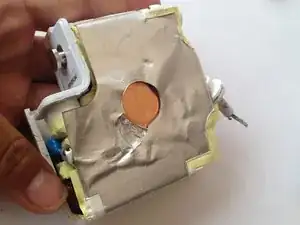

    wV5AFxiT3Bhx3ekP

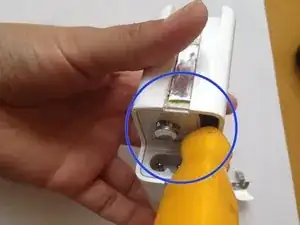

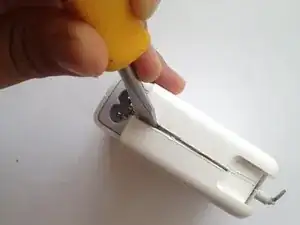

    • Con un cacciavite a taglio, inizia a separare le facce di plastica del caricatore. Per farlo, devi applicare un po' di forza.

    • Una volta separati tutti i lati con il cacciavite, non si staccherà ancora. Questo aggeggio è incollato su tutti i bordi di plastica.

    • Inserisci il cacciavite nella parte superiore del caricatore e separa con cura la pellicola dalla custodia in plastica. Fai attenzione a non strappare questa copertura dalla parte interna del caricatore.

    A few note's to make it look like new! And without damaging the outside.

    Tip1. Flip up the bunny ears and use the back of a lighter (or something else plastic that fits) between the gap and twist it open on both sides.

    Tip2. Use a small drill to clean out the rubber cable guide so u can re use it.

    Tip3. Use super glue and clamp the charger long enough for the glue to dry. (don't rush it!)

    peter van der Leij -

    Mine frayed at the computer end. Do you have any instructions for repairing that end?

    Jason Smeed -

    Maybe this guide can help you out How to repair the MagSafe Magnetic End

    Angela Penaherrera -

    I used a C ring pliers between the gap to pop it open. Refers to Tip 1

    Chaozhouzi Chaozhouzi -

    As mentioned above, this is the simplest way to open it: https://youtu.be/Yqa9uUKuddw?t=28s

    Max -

  5. lUZ1fKXLuWx1QyHI
    lUZ1fKXLuWx1QyHI
    ebPdKF2ANptSf3Nv

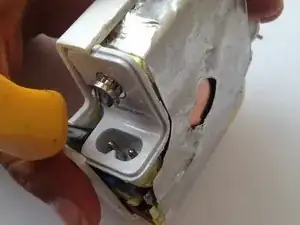

    BFLi2TaJyOJKssWH

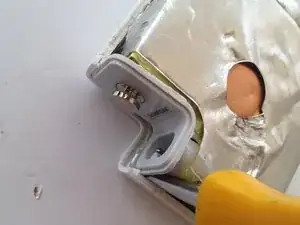

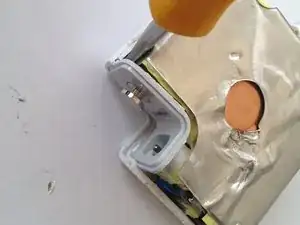

    • In questo passo ho già rimosso una faccia dell'involucro di plastica.

    • Usa il cacciavite per indebolire l'adesivo su entrambi i lati del connettore.

    • Inserisci il cacciavite nella restante faccia dell'involucro e stacca delicatamente il resto dell'adesivo.

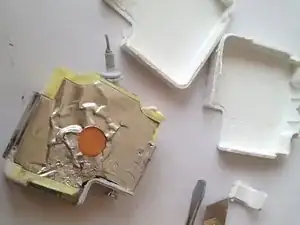

  6. TawH2ITFKxp5o5Uv

    • Dovresti restare con questo blocco, metti da parte l'involucro di plastica.

  7. mvpqDtLK1jDbZxsJ
    mvpqDtLK1jDbZxsJ
    j5hGeqVWq1EL5aYM
    5G44xnvK1nuayhMT

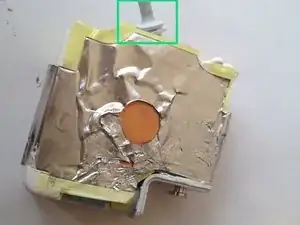

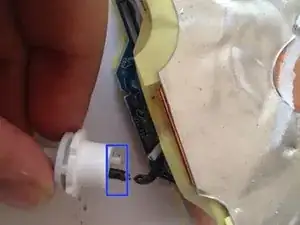

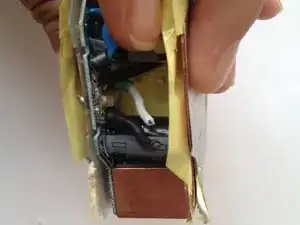

    • Prendi il piccolo pezzo di plastica che attacca i cavi all'alimentatore.

    • Taglia i cavi il più vicino possibile al pezzo di plastica.

    ACHTUNG: Dieses Plastikstück besteht aus 2 Teilen - den weissen und den grauen Teil - dort kannst du beim weissen Teil ein 4er Loch reinbohren - und beim grauen steckst du nun das reparierte Kabel rein (Fummels nur das alte graue Kabel raus) - damit hast du wieder eine perfekte Durchführung - und zum Schluß wenn alles funktioniert wird am Kabel ein 2 Komponentenkleber aufgetragen - und es sieht viel besser aus …... als diese Lösung mit Heisskleber oder so weiter unten.

    trefftronik -

    Save the plastic piece, cut the cables flush on both side and use a 1/8-in bit to drill the embedded cables out. Then you can reuse it and not have the unsightly hot-glue blob!

    Douglas Ling -

    Yep thats what I did. Then there is no need for the cable ties later on.

    pep073 -

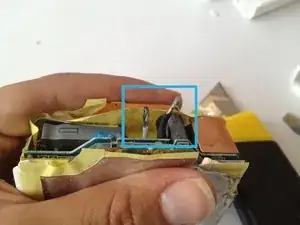

  8. N2AZTLJrXXlmix2x

    • Togliere la plastica dal cavo con un coltello o una spelafili.

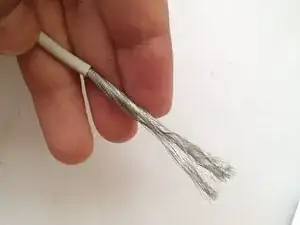

  9. ZcD5kfe6o3mKoiEC
    ZcD5kfe6o3mKoiEC
    wRa1tfHqgKUfJ11y
    ddpZ6P4tuTu6sDtf

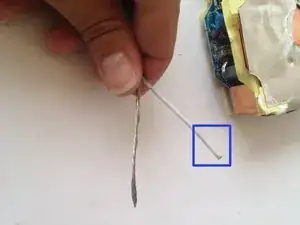

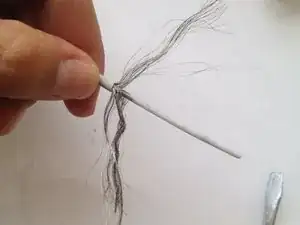

    • Prendi il cavo che si collega al tuo MacBook e pelalo attentamente con un coltello o una spelafili.

    • Districare il filo esterno per esporre il cavo bianco all'interno.

    • Ruota delicatamente il cavo esterno e pela un piccolo pezzo del cavo bianco per unirlo al caricabatterie.

    Hi,

    What is the use of the outer wire in the cable ?

    Thanks

    Natasha

    Natasha John Williams -

    Hi, it’s probably a bit late, but maybe it will help others…

    The outer wire is used to carry the electric mass thus protecting the inner wire physically and electromagnetically working as a armour.

    Cajuteq -

    bonjour, si le cordon est sectionné en son milieu peut on le raccorder sans risque avec un domino en prenant soin de relier les fils de masse et intérieur indépendamment? merci pour votre conseil

    Marie Andriot -

    Bonjour, un domino peut etre utilisé si vous le protégez pour que personne ne puisse toucher les parties métalliques du domino (vis notamment) pendant l’usage. Je vous conseil plutôt un raccord avec soudure et gaines thermoretractables pour une solution à long terme.

    Cajuteq -

  10. o3ZaoSWKcf16SKGa
    o3ZaoSWKcf16SKGa
    iaQqnKbOOPdBcSRj

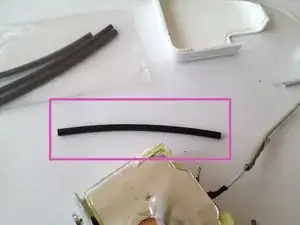

    S14ffs6ldNKKLxn5

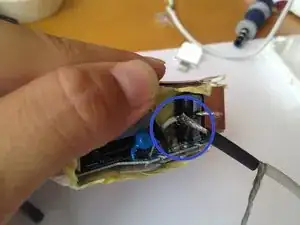

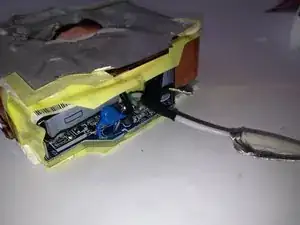

    • Unisci i cavi bianchi e saldali assieme.

    • Ricorda che il filo bianco dal caricabatterie DEVE essere saldato al filo bianco dal cavo che proviene dal connettore MacBook.

    • Il tubo nero sul cavo serve per isolarlo dopo, si restringe usando il calore (termorestringente).

    • L'ultima immagine mostra il tubo isolante nero, puoi tagliarlo per adattarlo alla lunghezza che ti serve.

    • È molto importante isolare entrambi i fili, non possono toccarsi o andranno in corto circuito (in altre parole: KABOOM).

    Angenommen ich bin so klug und teste das MacSafe einmal nach dem Zusammenlöten ohne die Kabel zu isolieren . Ich sehe ein Lämpchen. Die Freude ist von kurzer Dauer, denn DDDDDRRRRRRRRRTTTTT beide Kabel berühren sich und es kommt zu funken -.-

    ist das Magsafe jetzt hinüber? Gibt es eventuell eine Sicherung? Jemand ähnlich Geniales passiert?

    lg

    LLK -

    What if I short-circuited because of non-isolating the cables? Is the magsafe out of order right now?

    LLK -

    I found it very hard getting the solder to stick to the wire, maybe the type of wire apple uses? maybe the type of solder I was using? However my solution was to take some copper wire and twist it around the cable, then solder onto that this worked quite well as it gave the soilder something to stick to. hope this is helpful! perhaps somebody has another solution.

    James Clerke -

  11. FQSpK4TMFWBkd1Og
    FQSpK4TMFWBkd1Og
    YCWJycJRkxEOWk3C

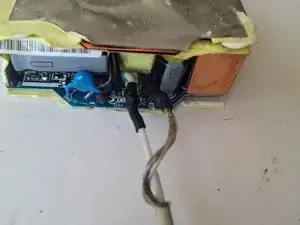

    ZODsDelJxyq6SFXE

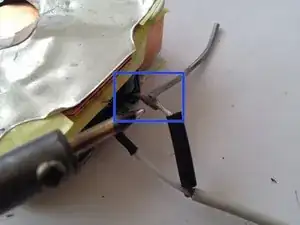

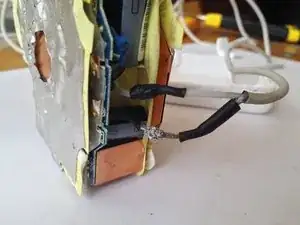

    • Procedere alla saldatura del cavo nero dal caricabatterie al filo esterno del connettore del Macbook.

    • Isola quel filo. Non devi coprirlo completamente ma solo a sufficienza in modo che non tocchi il cavo bianco o i circuiti dell'alimentazione.

    • È possibile utilizzare il tubo di gomma nera o il nastro isolante. Se si utilizza il tubo nero, cercare di tenerlo il più lontano possibile durante la saldatura per evitare che si restringa prima di coprire il cavo.

    Which solder or soldering Iron you guys used? I am trying to do everything with my Goot 40W soldering iron and nothing happens:-

    1. I tried to join black wire but my 60/40 solder won't stick to it at all.

    2. i tried to replace the whole cable with a new cable bought from Amazon and I am unable to get the joint on PCB to get melted.

    Please help!!!!

    varun_ag -

    Maybe the wires have insulation like a plastic covering to protected it from rust breakage?

    I thought it would be 60/40 also, that's the usual electrical solder mixture.

    Using a little piece of sandpaper or nail file it scuff it up, would expose it?

    I would also use a 🐊 clip (copper if they exist... Not the silver looking ones because they conduct electricity and they dissipate heat most efficent) to protect the components on the board side and the opposite leading that leads to the magnetic connection side, but if it wasn't making a connection with the soldering iron, then I guess it wasn't going to help much unless you exposed it all enough.

    Hope you or someone comments what happens.

    Also, you have to make sure your Soldering Iron has a tight connection with the screw.

    And did you make sure the tip of the iron was tinned, or making contact with anything by the copper showing on the tip first.

    Lately I been scuffing that also up with a file to expose the tip unfortunately Wiping it sufficient w/ wet sponge

    Jessica -

    Statt Isolierband und Kabelbinder kann man auch die alte Hülse (das kleine Plastikstück wird es hier genannt) mit einem 3 mm-Bohrer durchbohren. Die Drähte passen durch, und die Isolierung des Kabels bleibt darin fest. Dann lötet man wie beschrieben, isoliert die Drähte, setzt alles zusammen und hat von außen fast denselben Eindruck als wäre nie etwas gewesen …

    Norbert -

  12. K3UDTq1kUeyyhfQD
    K3UDTq1kUeyyhfQD
    hmCuPfsKBjFAOivi
    JM4eJbXTMwIqqPRn

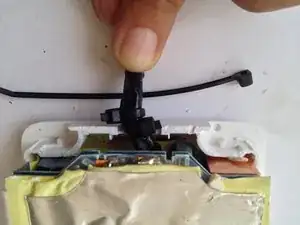

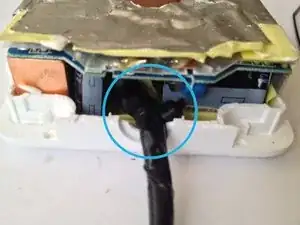

    • Copri con del nastro isolante il resto del cavo bianco e nero (esterno) che hai appena saldato.

    • Uniscili con del nastro isolante a formare un unico cavo e posiziona il caricabatterie in una delle facce dell'involucro di plastica.

    • Il nastro isolante bianco rende questa riparazione più bella da vedere.

    • Prendi tre piccole fascette e stringile attorno al cavo per impedire che possa essere estratto dalla custodia in plastica.

    Very useful instruction. I almost bought an expensive replacement. Thanks! I also tied a knot from the wire before soldering. The knot was small enough to fit in the housing where the "round piece" was. The knot will help reduce the chance that the wires being yanked out if you accidentally trip over it.

    hiennguyen -

    This guide was great, thank you for saving me the costs of a new charger. I found it was possible to use the original plastic attachment between the cable and the ac adapter for the repair.

    I first used a 3mm drill bit and removed the bit of cable in the plastic/rubber piece. I then used a 4mm bit to open the hole further and soften the rubber part of the piece. I then threaded the cable through the piece before soldering in step 10. It makes the fix look more like the charger in the beginning and also prevents the wires being pulled through the opening.

    kilian -

    Acutally if you have a set of drills you can carefully drill out the original button and thread the wires through it before soldering. Then there is no need for the cable ties.

    pep073 -

  13. IXs12x5WE1WwLCls

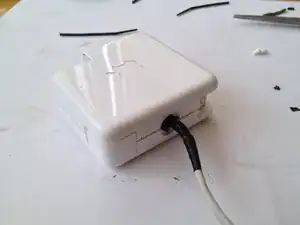

    • Metti piccoli punti di supercolla (cianoacrilica) sui bordi della custodia. Posiziona l'altra faccia dell'involucro di plastica e chiudi il caricabatterie.

    • Non dimenticare le linguette di plastica che ti consentono di avvolgere il cavo sul caricabatterie, anche se magari sono la causa principale della rottura del cavo. Di solito scelgo di lasciarle fuori o incollarle alla custodia per evitare che il cavo si rompa di nuovo.

  14. NDUCDFmAbeKUtMZR
    NDUCDFmAbeKUtMZR
    FxJS4hicQrqLN6JG

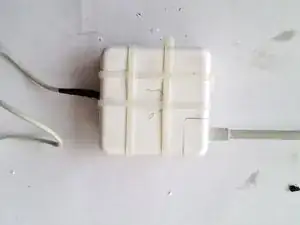

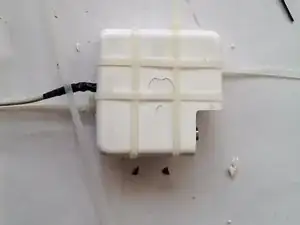

    • Lega quattro fascette grandi per chiudere la custodia, due su ciascun lato.

    • Alcune persone preferiscono usare solo la supercolla (cianoacrilica) perché il risultato si presenta meglio, ma le fascette lo rendono più sicuro. Se preferisci non usare le fascette, rimuovile qualche ora dopo quando la colla si sarà seccata completamente.

  15. aoWXAwyE3BrShjeX
    aoWXAwyE3BrShjeX
    IQNGPTpJfd126ANY

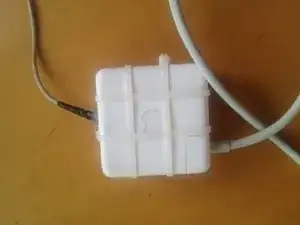

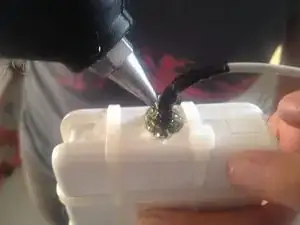

    • Usa una pistola per la colla a caldo per chiudere lo spazio rimasto.

    • Non usarne troppa, solo quanto basta perché non ci siano più aperture.

    instead of glue, put liquid silicon for bathrooms, that's easier to remove if you need to / however to give a form, when not yet dry, some difficulties ( it sticks on fingers )

    Christophe Siekierkowski -

    I use my macbook at school and I'm on my 4th charger :( https://vidd.me/SuY

    Tess -

    instead of glue i suggest Sugru for the finishing touch.. https://sugru.com/

    sebastianfrith -

    Instead of using the stub wires I soldered the cable ends directly to the PCB. Although it worked I cannot recommend it as the PCB is easily damaged when removing the pins to which the wires are connected. Pulling off a PCB track would step up the difficulty of repair considerably....

    bommels -

    Kind of mangled the case when prying it off so I just wrapped it up in duct tape. Ghetto, but works.

    Ola -

    Also ich halte diesen Reparaturweg für KEINESFALLS fachgerecht. Zunächst lässt sich das Netzteil sehr wohl ganz sauber öffnen und mit Kunststoffkleber (Revell) wieder sauber verkleben. Es schadet natürlich nicht, das Gehäuse zur Sicherheit mit einem Textilband zu verkleben, um 1000% sicher zu sein. Aber doch nicht mit mehreren Kunststoffstrapsen.

    Und bitte nicht mit Heißkleber. Wie viele Tage soll das bitte halten? Bei den Rep.-Kabeln sind doch die Gummitüllen dabei und wenn Ihr nur das alte Kabel abschneidet, könnt Ihr die alte Tülle weiter verwenden.

    Dann lässt sich das Kabel auch sehr gut in die Platine einlöten. Der Zeitaufwand ist dabei unter 30 Minuten. Nein, schwierig ist das keinesfalls. Es gibt bei Youtube auch ein sehr schönes Video dazu. Also keine Angst, ist ganz leicht. Aber ACHTUNG! An Hochspannungsbauteilen haben nur Leute herumzubasteln, die wissen, was sie tun.

    Christian F. -

    Thank you very much, just saved myself a decent amount of money!

    Conor Martin -

    thank you very very much

    kajem Ahmed -

    Super, vielen Dank für die Anleitung. Hat alles wunderbar geklappt, habe allerdings das Gehäuse mit einer Zange geöffnet, wie in dem Video im Kommentar zu Schritt 3.

    Am Schluss das Gehäuse mit Klebeband fixiert, sieht nicht schön aus aber ‘s hebt’ wie man bei uns so schön sagt

    hans -

    I cut the wire as close to each end of the plastic/rubber plug/grommet that covers the case opening. I used a 1/8-in bit and drilled out the two embedded cables. Enlarge the hole slightly and the wire will slide through. Do this before STEP 9. Once the black cable is “twirled up”, it may get more difficult to slide through the 1/8” opening (but still possible).

    Douglas Ling -

    Drill out the original knob that goes in there. Get the cable through before the soldering step. Then you can just pop it back in.

    pep073 -

    What a crap! You better solder the cable in the PCB and reuse the old cable holder, insteat glue. Or cut the cable holder in 2 and solder it there.

    You have to use special super glue with gum. The normal break to fast

    13.03.90 -
